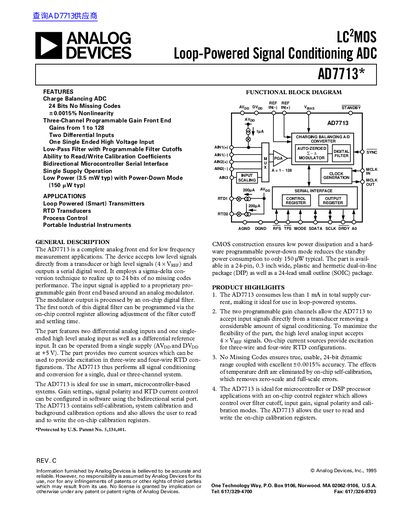

Analog Devices AD7713 Loop-Powered Signal Conditioning ADC Datasheet
The AD7713 is a complete analog front-end designed for low-frequency measurement applications. It utilizes a proprietary charge-balancing sigma-delta conversion technique to achieve up to 24 bits of no missing codes performance. The device accepts low-level signals directly from transducers or high-level signals and outputs a serial digital word.
Read onlineAnalog Devices AD7713 specifications
| Resolution (No Missing Codes) | 24 Bits min |
|---|---|
| Integral Nonlinearity | +0.0015 % of FSR max |
| Low Power Consumption | 3.5 mW typ |
| Operating Temperature Range (A Version) | -40°C to +85°C |
| RTD Excitation Current | 200 uA nom |
Source: Analog Devices AD7713 Loop-Powered Signal Conditioning ADC Datasheet
All Analog Devices AD7713 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum gain of the programmable front end?
The gains range from 1 to 128.
From: Analog Devices AD7713 Loop-Powered Signal Conditioning ADC Datasheet
Does the AD7713 support RTD configurations?
Yes, it provides two current sources for three-wire and four-wire RTD configurations.
From: Analog Devices AD7713 Loop-Powered Signal Conditioning ADC Datasheet
What is the typical power consumption of the AD7713 in normal operation?
The AD7713 typically consumes about 3.5 mW in normal mode.
Which package types are available for the AD7713?
The device is offered in PDIP, CERDIP, and SOIC packages.
What is the total supply current of the AD7713?
The AD7713 consumes less than 1 mA in total supply current.
How many differential analog inputs does the AD7713 have?
It has two differential analog inputs and one single‑ended high‑voltage input.
