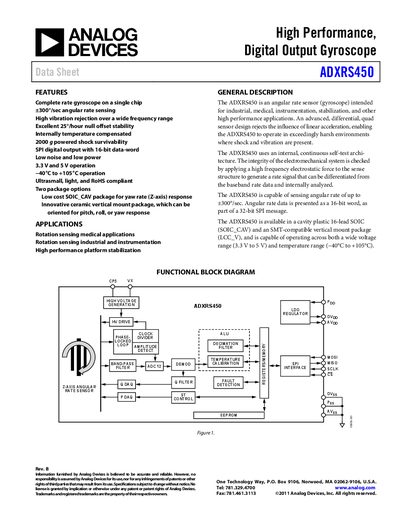

Analog Devices ADXRS450 Gyroscope Datasheet
The ADXRS450 is a high‑performance angular‑rate sensor offering up to ±300°/sec rate sensing, low noise, and robust operation across a wide temperature range. It features an internal continuous self‑test architecture and provides SPI digital output with a 16‑bit data word.
Two package options are available: a 16‑lead SOIC cavity package for Z‑axis (yaw) sensing and a 14‑lead ceramic vertical‑mount package for pitch or roll sensing. The device operates from 3.15 V to 5.25 V, tolerates shock up to 2000 g, and includes ESD protection.
Analog Devices ADXRS450 specifications
| Full‑scale range | +300°/sec |
|---|---|
| Supply voltage range | 3.15 V – 5.25 V |
| Quiescent supply current | 6.0 mA – 10.0 mA |
| Rate noise density | 0.015 °/sec·√Hz (25°C) |
| Nominal sensitivity | 80 LSB/°/sec |
| Shock survivability | 2000 g (powered and unpowered) |
All Analog Devices ADXRS450 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the full‑scale range of the ADXRS450?
The device can measure angular rates up to ±300°/sec.
What supply voltage does the ADXRS450 require?
It operates from 3.15 V to 5.25 V.
What is the maximum angular rate this sensor can detect?
The sensor can detect angular rates up to ±300°/s.
From: Analog Devices ADXRS450 Digital Output Gyro Sensor Datasheet
What is the maximum acceleration the device can withstand?
The device can withstand an acceleration of 2000 g.
From: Analog Devices ADXRS450 Digital Output Gyro Sensor Datasheet
