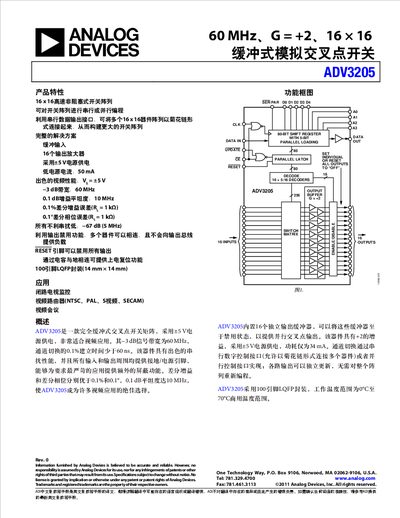

Analog Devices ADV3205 16 x 16 Buffered Analog Crosspoint Switch Datasheet
The ADV3205 is a fully buffered crosspoint switch matrix powered by ±5 V, designed specifically for video applications. It features a −3 dB signal bandwidth of 60 MHz and a channel switching time of less than 60 ns. The device includes 16 independent output buffers that can be disabled to provide parallel crosspoint outputs.
Read onlineAnalog Devices ADV3205 specifications
| Gain | +2 |
|---|---|
| Channel Switching Time | < 60 ns |
| Supply Voltage | ±5 V |
| Package Type | 100-pin LQFP |
| Operating Temperature Range | 0°C to 70°C |
| All Unwanted Crosstalk | -67 dB |
Source: Analog Devices ADV3205 16 x 16 Buffered Analog Crosspoint Switch Datasheet
All Analog Devices ADV3205 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the gain of the ADV3205?
The ADV3205 has a gain of +2.
From: Analog Devices ADV3205 16 x 16 Buffered Analog Crosspoint Switch Datasheet
Can the ADV3205 be connected in a daisy-chain configuration?
Yes, multiple devices can be connected in a daisy-chain configuration using the serial data output interface.
From: Analog Devices ADV3205 16 x 16 Buffered Analog Crosspoint Switch Datasheet
What is the bandwidth of the ADV3205?
The device has a –3 dB bandwidth of 60 MHz.
What is the typical supply current when all outputs are enabled?
Typical supply current is 45 mA (45‑50 mA range) with AVcc outputs enabled and no load.
