Start here

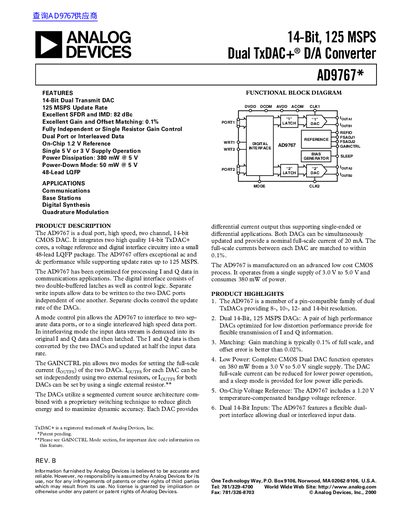

Analog Devices AD9767* Datasheet
The AD9767* is a high-speed, two-channel, 14-bit CMOS DAC designed for communications applications such as base stations and digital synthesis. It integrates two high-quality TxDAC+ cores with an on-chip voltage reference and flexible digital interface circuitry into a small 48-lead LQFP package.
The device supports update rates up to 125 MSPS and offers exceptional AC and DC performance, including spurious-free dynamic range (SFDR) of 82 dBc. It features fully independent or single resistor gain control and can operate in dual port or interleaved data modes.
Analog Devices AD9767 specifications
| Resolution | 14 Bits |
|---|---|
| Maximum Output Update Rate | 125 MSPS |
| Full-Scale Output Current | 20 mA |
| Reference Voltage | 1.20 V |
| Operating Temperature Range | -40 to +85 °C |
Source: Analog Devices AD9767* Datasheet
All Analog Devices AD9767 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum update rate of the AD9767?
The device supports a maximum output update rate of 125 MSPS.
Does the AD9767 include an on-chip voltage reference?
Yes, it includes a 1.20 V temperature-compensated bandgap voltage reference.
What is the maximum output update rate of the AD9763/AD9765/AD9767?
The devices support a maximum output update rate of 125 MSPS.
From: Analog Devices AD9763/AD9765/AD9767 Dual TxDAC+ Data Sheet
What is the full‑scale output current for each DAC?
Each DAC can deliver a nominal full‑scale output current of 20 mA.
From: Analog Devices AD9763/AD9765/AD9767 Dual TxDAC+ Data Sheet
