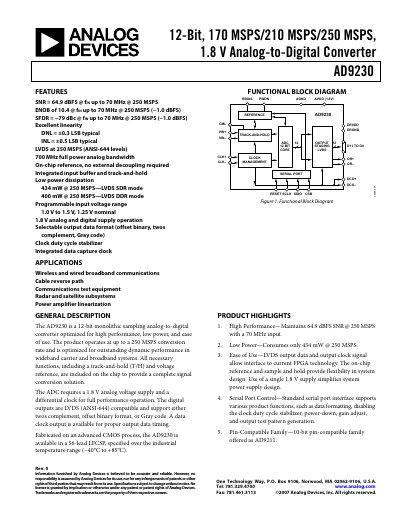

Analog Devices AD9230 12‑Bit ADC Datasheet
The AD9230 is a 12‑bit monolithic sampling ADC optimized for high performance, low power, and ease of use. It operates from a single 1.8 V supply and provides LVDS digital outputs in offset binary, two's complement, or Gray code formats.
Key features include up to 250 MSPS conversion rate, 64.9 dBFS SNR, 10.4‑bit ENOB at 70 MHz, programmable input range, on‑chip reference, and a serial SPI interface for configuration. The datasheet provides full specifications, pin descriptions, timing diagrams, and ordering information.
Analog Devices AD9230 specifications
| Resolution | 12 bits |
|---|---|
| Maximum Sampling Rate | 250 MSPS |
| Supply Voltage (AVDD/DRVDD) | 1.8 V |
| Power Dissipation (SDR mode) | 434 mW @ 250 MSPS |
| Signal‑to‑Noise Ratio | 64.9 dBFS @ 250 MSPS |
| Effective Number of Bits | 10.4 bits @ 70 MHz |
| Output Data Formats | Offset binary, two's complement, Gray code |
All Analog Devices AD9230 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD9230?
The AD9230 can sample at up to 250 MSPS.
What supply voltage does the AD9230 require?
It requires a 1.8 V analog supply (AVDD) and a 1.8 V digital supply (DRVDD).
What is the maximum sampling rate of the AD9230-11?
The AD9230-11 can sample at up to 200 MSPS.
What supply voltages does the AD9230-11 require?
It requires a 1.8 V analog supply (AVDD) and a 1.8 V digital supply (DRVDD).
