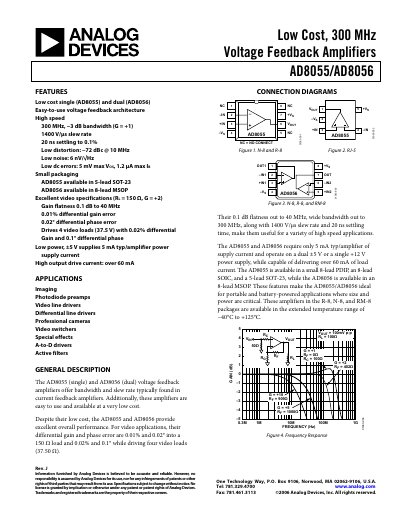

Analog Devices AD8055/AD8056 Voltage Feedback Amplifiers Datasheet
The AD8055 (single) and AD8056 (dual) are low-cost voltage feedback amplifiers offering bandwidth and slew rate typically found in current feedback amplifiers. Key features include a 300 MHz −3 dB bandwidth, 1400 V/μs slew rate, and low noise of 6 nV/√Hz. They operate on dual ±5 V or single +12 V supplies with typical quiescent currents of 5 mA per amplifier.
Read onlineAnalog Devices AD8055/AD8056 specifications
| -3 dB Bandwidth (G=+1, VO=0.1 V p-p) | 220 MHz Typ / 300 MHz Max |
|---|---|
| Slew Rate (G=+1) | 1400 V/μs Max |
| Input Voltage Noise (f=100 kHz) | 6 nV/√Hz |
| Supply Voltage Range | ±4.0 V to ±6.0 V |
Source: Analog Devices AD8055/AD8056 Voltage Feedback Amplifiers Datasheet
All Analog Devices AD8055/AD8056 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical quiescent current for the AD8055?
The typical quiescent current for the AD8055 is 5 mA per amplifier.
From: Analog Devices AD8055/AD8056 Voltage Feedback Amplifiers Datasheet
What are the available package types?
The AD8055 is available in 5-lead SOT-23, 8-lead PDIP, and 8-lead SOIC; the AD8056 is available in 8-lead MSOP.
From: Analog Devices AD8055/AD8056 Voltage Feedback Amplifiers Datasheet
What is the input voltage noise of the AD8055/AD8056?
The input voltage noise is 6 nV/√Hz measured at 100 kHz.
From: Analog Devices AD8055/AD8056 Low Cost 300 MHz Voltage Feedback Amplifier Datasheet
How much current can the device source during a short circuit?
The device can source up to 110 mA in a short‑circuit condition.
From: Analog Devices AD8055/AD8056 Low Cost 300 MHz Voltage Feedback Amplifier Datasheet
What is the typical quiescent current for the AD8055?
The typical quiescent current for the AD8055 is about 5.4 mA.
What supply voltage range is recommended for the AD8055/AD8056?
The devices operate from a typical ±5 V supply, with an allowable range of ±4 V to ±6 V.
