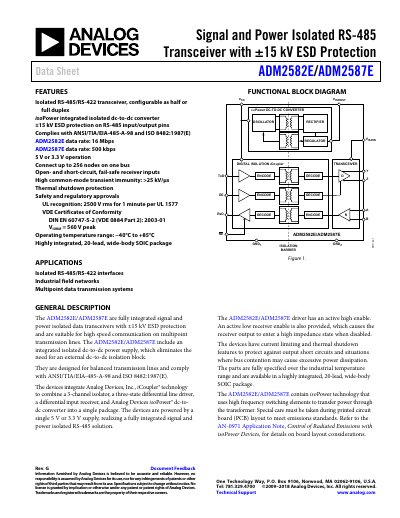

Analog Devices ADM2582E/ADM2587E Signal and Power Isolated RS-485 Transceiver Data Sheet
The ADM2582E and ADM2587E are fully integrated signal and power isolated data transceivers suitable for high-speed communication on multipoint transmission lines. They utilize Analog Devices' iCoupler technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and an isoPower DC-to-DC converter into a single package. These devices are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E) standards.
Read onlineAnalog Devices ADM2582E/ADM2587E specifications
| ADM2582E Maximum Data Rate | 16 Mbps |
|---|---|
| ADM2587E Maximum Data Rate | 500 kbps |
| ESD Protection | ±15 kV |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 20-lead wide-body SOIC |
| Supply Voltage | 5 V or 3.3 V |
| Maximum Nodes per Bus | 256 |
Source: Analog Devices ADM2582E/ADM2587E Signal and Power Isolated RS-485 Transceiver Data Sheet
All Analog Devices ADM2582E/ADM2587E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate for the ADM2582E?
The maximum data rate for the ADM2582E is 16 Mbps.
From: Analog Devices ADM2582E/ADM2587E Signal and Power Isolated RS-485 Transceiver Data Sheet
What is the maximum data rate for the ADM2587E?
The maximum data rate for the ADM2587E is 500 kbps.
From: Analog Devices ADM2582E/ADM2587E Signal and Power Isolated RS-485 Transceiver Data Sheet
What is the maximum data rate for the ADM2582E?
The ADM2582E supports a maximum data rate of 16 Mbps.
How many nodes can be connected on a single RS‑485 bus?
Up to 256 transceivers can be connected on one bus.
