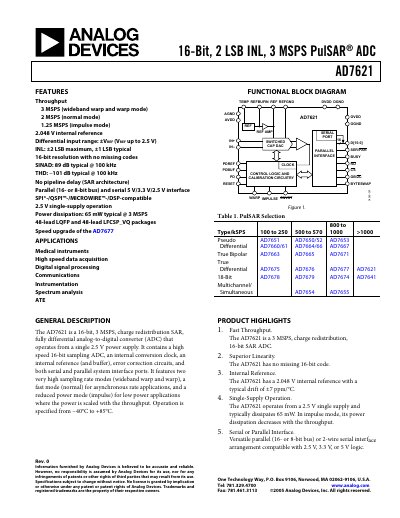

Analog Devices AD7621 ADC Datasheet
The AD7621 is a 16‑bit, charge‑redistribution SAR analog‑to‑digital converter capable of up to 3 MSPS throughput in wideband warp mode. It operates from a single 2.5 V supply, includes an internal 2.048 V reference, and offers both parallel and serial (SPI/QSPI/MICROWIRE/DSP‑compatible) interfaces.
The device features a differential input range of ±VREF (up to 2.5 V), typical power dissipation of 65 mW at 3 MSPS, and operates from –40 °C to +85 °C. Detailed pin configurations, timing specifications, and application guidelines are provided for system integration.
Analog Devices AD7621 specifications
| Resolution | 16 Bits |
|---|---|
| Maximum Throughput | 3 MSPS (wideband warp mode) |
| Power Dissipation | 65 mW typical @ 3 MSPS |
| Internal Reference Voltage | 2.048 V |
| Differential Input Range | ±VREF (VREF up to 2.5 V) |
| Operating Temperature Range | –40 °C to +85 °C |
| Digital Interface Options | SPI®, QSPI®, MICROWIRE®, DSP‑compatible |
