Analog Devices ADP151 Manuals

ManualLib has 3 documents for the Analog Devices ADP151 (Other Electronics): 1 user manual, 2 datasheets. Every file can be read online or downloaded as a PDF for free.

User Manual 1Datasheet 2

Key facts

Model
ADP151
Documents
3
Languages
EN
Last added
2026-11-10

Start here

Analog Devices ADP151 Evaluation Board User Guide

Analog Devices ADP151 Evaluation Board User Guide

User Manual 12 pages · 298 KB · EN

This guide covers the ADP151 evaluation board hardware, configurations, and measurement setups for output voltage, line and load regulation, dropout voltage, and ground current.

It also includes connection steps for TSOT, WLCSP, and LFCSP board versions and a bill of materials.

Read online

Analog Devices ADP151 specifications

Input voltage range2.2 V to 5.5 V
Output current range0 mA to 200 mA
Output voltage accuracy±1%
Operating temperature range-40°C to +125°C

Source: Analog Devices ADP151 Evaluation Board User Guide

All Analog Devices ADP151 documents by type

User Manual 1

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the input voltage range of the ADP151?

The input voltage range is 2.2 V to 5.5 V.

From: Analog Devices ADP151 Evaluation Board User Guide

What is the output current range?

The output current range is 0 mA to 200 mA.

From: Analog Devices ADP151 Evaluation Board User Guide

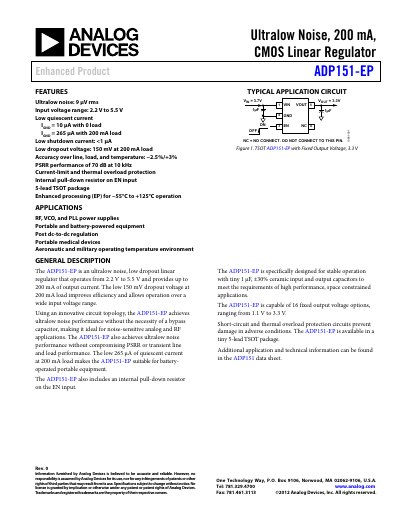

What is the operating temperature range for the ADP151-EP?

The device operates from -55°C to +125°C.

From: Analog Devices ADP151-EP Ultralow Noise Linear Regulator Datasheet

Does the ADP151-EP require bypass capacitors?

No, it achieves ultralow noise performance without the necessity of a bypass capacitor.

From: Analog Devices ADP151-EP Ultralow Noise Linear Regulator Datasheet

What is the input voltage range of the ADP151?

The ADP151 operates from 2.2 V to 5.5 V input.

From: Analog Devices ADP151 Linear Regulator Datasheet

How much output current can the ADP151 provide?

It can supply up to 200 mA of output current.

From: Analog Devices ADP151 Linear Regulator Datasheet
