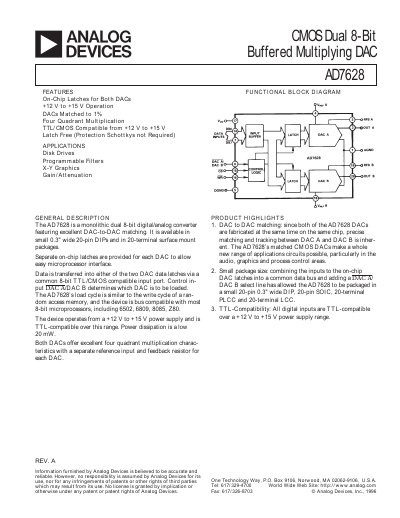

Analog Devices AD7628 Dual 8‑Bit Buffered Multiplying DAC Datasheet
The AD7628 is a monolithic dual 8‑bit digital‑to‑analog converter featuring matched DACs, small 0.3‑inch wide 20‑pin packages, and on‑chip latches for easy microprocessor interfacing. It operates from a +12 V to +15 V supply and consumes only 20 mW.
The datasheet provides detailed specifications, absolute maximum ratings, interface logic information, application guidelines, and mechanical dimensions, enabling designers to integrate the device into audio, graphics, and process‑control systems.
Analog Devices AD7628 specifications
| Resolution | 8 bits |
|---|---|
| Power Dissipation | 20 mW |
| Supply Voltage Range | +12 V to +15 V |
| Input High Voltage (V_IH) | 2.4 V min |
| Input Low Voltage (V_IL) | 0.8 V max |
| Output Leakage Current (OUT A) | ±50 nA max |
| Gain Error | ±2 LSB max |
Source: Analog Devices AD7628 Dual 8‑Bit Buffered Multiplying DAC Datasheet
All Analog Devices AD7628 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD7628 require?
It operates from a +12 V to +15 V power supply.
From: Analog Devices AD7628 Dual 8‑Bit Buffered Multiplying DAC Datasheet
How much power does the AD7628 dissipate?
The device dissipates about 20 mW.
From: Analog Devices AD7628 Dual 8‑Bit Buffered Multiplying DAC Datasheet
What supply voltage range does the AD7628 operate from?
The AD7628 can be operated with any supply voltage in the range 10.8 V to 15.75 V, and it is also specified to work from a +12 V to +15 V power supply.
How many bits of resolution does the AD7628 provide?
The AD7628 provides 8‑bit resolution for each of its two DAC channels.
