Start here

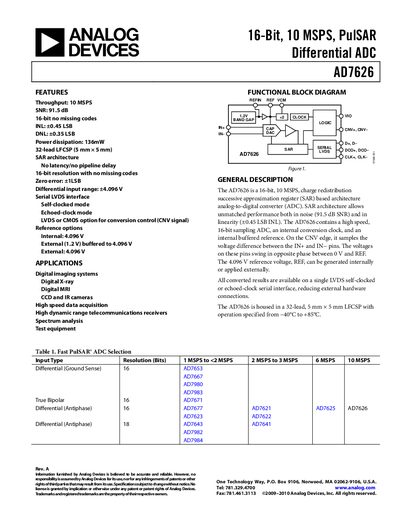

Analog Devices AD7626 Product Handbook Rev A
The AD7626 is a 16‑bit, 10 MSPS charge‑redistribution successive‑approximation ADC offered by Analog Devices. It features a differential input range of ±4.096 V, an internal 4.096 V reference (or external reference options), and a serial LVDS interface that can operate in self‑clocked or echoed‑clock modes.
Housed in a 32‑lead 5 mm × 5 mm LFCSP package, the device operates from –40 °C to +85 °C and consumes as little as 88 mW when idle. Detailed specifications, pin descriptions, timing diagrams, and absolute maximum ratings are provided for designers.
Analog Devices AD7626 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput | 10 MSPS |
| Signal‑to‑Noise Ratio | 91.5 dB |
| Power Dissipation (static, not converting) | 88 mW |
| Differential Input Range | ±4.096 V |
| Operating Temperature Range | –40 °C to +85 °C |
All Analog Devices AD7626 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7626?
The AD7626 can sample at up to 10 MSPS.
What reference voltage options does the AD7626 support?
It offers an internal 4.096 V reference or an external 4.096 V reference, and an internal 1.2 V buffered reference can be used with external sources.
What is the maximum sampling rate of the AD7626?
The AD7626 can sample at up to 10 MSPS.
From: Analog Devices AD7626 16‑Bit 10 MSPS SAR ADC Datasheet
What serial interface does the AD7626 use?
It uses a serial LVDS interface that can operate in self‑clocked or echoed‑clock mode.
From: Analog Devices AD7626 16‑Bit 10 MSPS SAR ADC Datasheet
