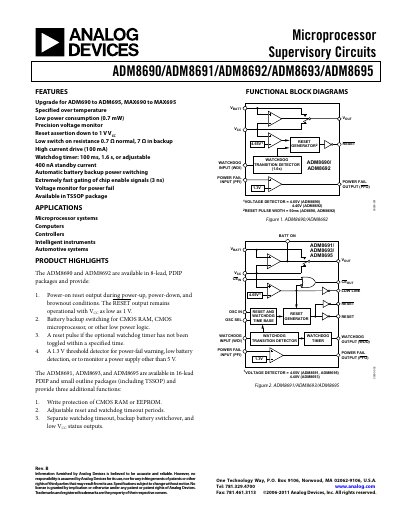

Analog Devices ADM8690/ADM8691/ADM8692/ADM8693/ADM8695 Supervisory Circuit Datasheet
The ADM869x family of supervisory circuits offers single‑chip solutions for power‑supply monitoring, reset generation, battery backup switching, watchdog timing and RAM write protection in microprocessor systems. Features include low power consumption (0.7 mW), fast chip‑enable gating (3 ns), high current drive (up to 100 mA) and adjustable watchdog and reset timeouts.
Typical applications are microprocessor systems, computers, controllers, intelligent instruments and automotive electronics. The devices are supplied in PDIP and TSSOP packages and include pins for reset, power‑fail, watchdog, battery‑backup and logic control signals.
Analog Devices ADM8691 specifications
| Supply current (standby) | 0.4 µA |
|---|---|
| Low power consumption | 0.7 mW |
| Maximum output current drive | 100 mA |
Source: Analog Devices ADM8690/ADM8691/ADM8692/ADM8693/ADM8695 Supervisory Circuit Datasheet
All Analog Devices ADM8691 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the watchdog timer be disabled?
Yes, the watchdog timer is disabled if the WDI pin is left floating or unconnected.
From: Analog Devices ADM8690/ADM8691/ADM8692/ADM8693/ADM8695 Supervisory Circuit Datasheet
What is the reset voltage threshold for the ADM8690/ADM8691/ADM8695?
The reset threshold is typically 4.65 V, with a specified range of 4.5 V to 4.73 V.
What is the typical supply current of these devices?
Typical supply current is between 140 µA and 200 µA under normal operation.
