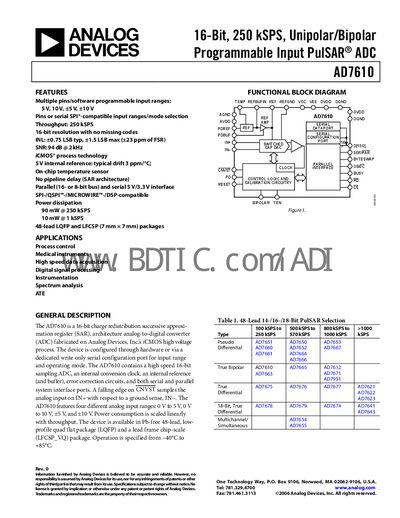

Analog Devices AD7610 Datasheet
The AD7610 from Analog Devices is a 16‑bit charge‑redistribution successive‑approximation ADC offering up to 250 kSPS throughput. It supports multiple programmable input ranges (0‑5 V, 0‑10 V, ±5 V, ±10 V) and includes an internal 5 V reference, temperature sensor, and both serial (SPI/QSPI/MICROWIRE) and parallel interfaces.
Key features include a low‑power design (90 mW at 250 kSPS with internal reference), 94 dB SNR at 2 kHz, and a compact 48‑lead LQFP or LFCSP package. The datasheet provides full electrical specifications, timing diagrams, absolute maximum ratings, and pin‑function descriptions for designers.
Analog Devices AD7610 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput Rate | 250 kSPS |
| Power Dissipation (250 kSPS, internal reference low) | 90 mW |
| Signal‑to‑Noise Ratio (2 kHz) | 94 dB |
