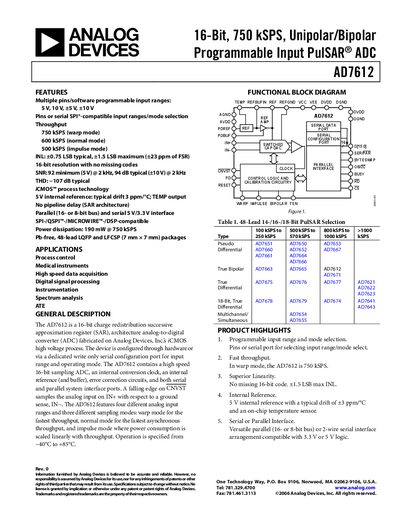

Analog Devices AD7612 Datasheet
The AD7612 is a 16‑bit charge‑redistribution successive approximation register (SAR) analog‑to‑digital converter fabricated on Analog Devices' iCMOS high‑voltage process. It offers multiple programmable input ranges, an internal 5 V reference, and both serial (SPI/QSPI/MICROWIRE) and parallel interfaces.
Key features include a maximum throughput of 750 kSPS in warp mode, low INL (±1.5 LSB max), 92 dB SNR at 5 V input, and power dissipation of 190 mW at full speed. The device is supplied in Pb‑free 48‑lead LQFP and LFCSP packages and operates from –40 °C to +85 °C, making it suitable for process control, medical instruments, high‑speed data acquisition, and ATE applications.
Analog Devices AD7612 specifications
| Resolution | 16 bits |
|---|---|
| Maximum throughput (warp mode) | 750 kSPS |
| Power dissipation @ 750 kSPS | 190 mW |
| Internal reference voltage | 5 V |
Source: Analog Devices AD7612 Datasheet
All Analog Devices AD7612 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the highest sampling rate of the AD7612?
The AD7612 can sample at up to 750 kSPS in warp mode.
How much power does the AD7612 consume at its maximum speed?
It dissipates about 190 mW when operating at 750 kSPS.
