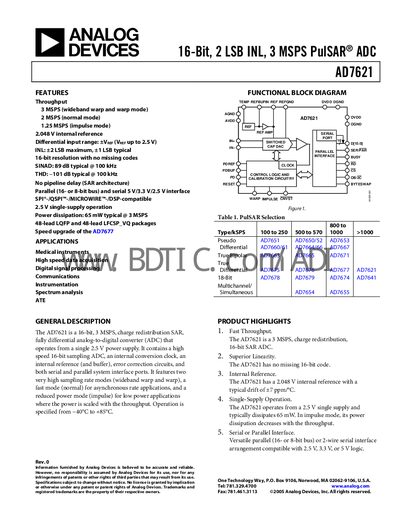

The 16-Bit, 2 LSB INL, 3 MSPS PulSAR® ADC AD7621 is an upgrade of the AD7677 with higher sample rate, lower distortion and higher resolution
The AD7621 is a 16‑bit, charge‑redistribution SAR analog‑to‑digital converter that delivers up to 3 MSPS in wideband warp mode and operates from a single 2.5 V supply. It includes an internal 2.048 V reference, low power consumption (65 mW typical at full speed), and both serial (SPI/QSPI/MICROWIRE) and parallel (8‑ or 16‑bit) data interfaces.
The device offers high linearity with no missing codes, INL of +2 LSB max (+1 LSB typ), SINAD of 89 dB at 100 kHz, and THD of –101 dB. It is specified for –40 °C to +85 °C operation and is available in 48‑lead LQFP and LFCSP packages.
| Resolution | 16 bits |
|---|---|
| Maximum Throughput | 3 MSPS (wideband warp mode) |
| Power Dissipation | 65 mW typical @ 3 MSPS |
| Internal Reference Voltage | 2.048 V |
| Supply Voltage | 2.5 V single‑supply |
| Operating Temperature Range | -40 °C to +85 °C |
| Integral Non‑Linearity (INL) | +2 LSB max, +1 LSB typical |
| SINAD | 89 dB typical @ 100 kHz |
| THD | -101 dB typical @ 100 kHz |
The AD7621 can sample at up to 3 MSPS in wideband warp mode.
It operates from a single 2.5 V power supply.
Typical power dissipation is 65 mW when running at 3 MSPS.
The device includes a 2.048 V internal reference.
