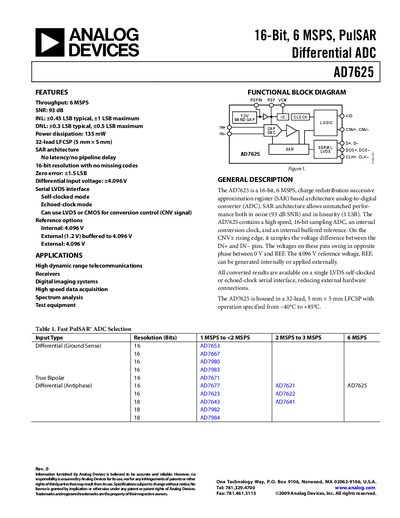

Analog Devices AD7625 16-bit 6 MSPS SAR ADC Datasheet
The AD7625 is a 16‑bit, 6 MSPS charge‑redistribution successive‑approximation register (SAR) analog‑to‑digital converter. It offers a differential input range of ±4.096 V, a 93 dB signal‑to‑noise ratio, and no missing codes, making it suitable for high‑speed data acquisition, telecommunications, and test equipment.
The device is supplied in a 32‑lead LFCSP package (5 mm × 5 mm) and operates from –40 °C to +85 °C. Data are output over a serial LVDS interface in either self‑clocked or echoed‑clock mode, simplifying board layout. Power dissipation is low (≈135 mW) and the part includes internal reference options (1.2 V or 4.096 V).
Analog Devices AD7625 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput | 6 MSPS |
| Signal‑to‑Noise Ratio | 93 dB |
| Power Dissipation | 135 mW |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD7625 16-bit 6 MSPS SAR ADC Datasheet
All Analog Devices AD7625 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7625?
The AD7625 can sample at up to 6 MSPS.
What digital interface does the AD7625 use?
It provides a serial LVDS interface that can operate in self‑clocked or echoed‑clock mode.
What is the maximum sampling rate of the AD7625?
The AD7625 can sample at up to 6 MSPS.
What is the typical signal‑to‑noise ratio (SNR) of the AD7625?
The typical SNR is 92 dB.
