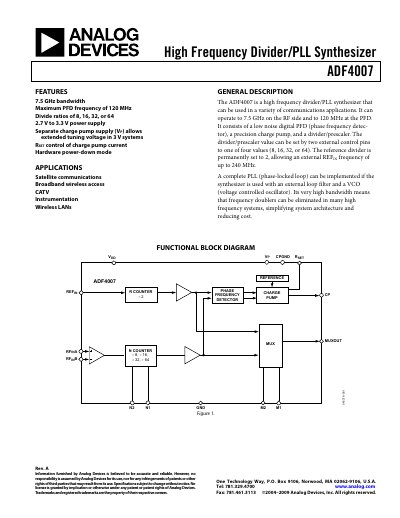

Analog Devices ADF4007 High Frequency Divider/PLL Synthesizer Datasheet Rev A
The ADF4007 is a high‑frequency divider/PLL synthesizer that operates up to 7.5 GHz on the RF side and supports a phase‑frequency detector (PFD) frequency of up to 120 MHz. It offers selectable divide ratios of 8, 16, 32 or 64, a 2.7 V‑3.3 V power‑supply range, and a dedicated charge‑pump supply for extended tuning voltage.
The datasheet includes detailed specifications, absolute maximum ratings, pin‑function tables, typical performance curves, theory of operation, PCB design guidelines for the chip‑scale package, outline dimensions, and ordering information. These sections help designers integrate the ADF4007 into satellite communications, broadband wireless, CATV, instrumentation, and wireless LAN applications.
Analog Devices ADF4007 specifications
| Maximum RF Input Frequency | 7.5 GHz |
|---|---|
| Maximum PFD Frequency | 120 MHz |
| Divide Ratios | 8, 16, 32, 64 |
| Power‑Supply Voltage (AVDD) | 2.7 V to 3.3 V |
| Operating Temperature Range (Industrial) | -40 °C to +85 °C |
Source: Analog Devices ADF4007 High Frequency Divider/PLL Synthesizer Datasheet Rev A
All Analog Devices ADF4007 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum RF input frequency of the ADF4007?
The device can handle RF input frequencies up to 7.5 GHz.
From: Analog Devices ADF4007 High Frequency Divider/PLL Synthesizer Datasheet Rev A
What divide ratios are available on the ADF4007?
The selectable divide ratios are 8, 16, 32, and 64.
From: Analog Devices ADF4007 High Frequency Divider/PLL Synthesizer Datasheet Rev A
What are the selectable divide ratios for the ADF4007?
The device can be set to divide by 8, 16, 32, or 64.
What is the maximum phase‑detector (PFD) frequency?
The phase‑detector can operate up to 120 MHz.
