Start here

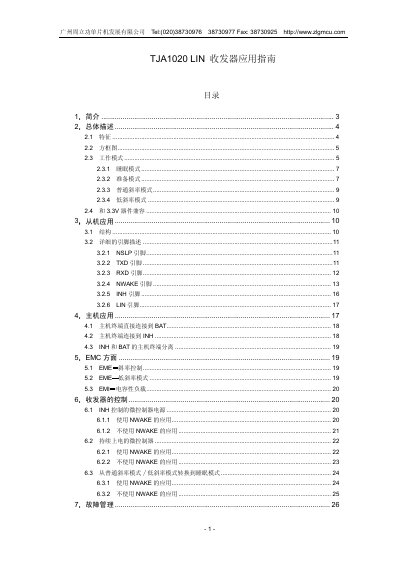

Philips TJA1020 LIN Transceiver Application Guide
This document serves as an application guide for the Philips TJA1020 LIN transceiver, focusing on its implementation as a physical media attachment in LIN electronic control units (ECUs). It details the device's characteristics, including support for baud rates up to 20kBaud and compatibility with 3.3V devices.
The guide provides technical descriptions of the four operating modes: Sleep, Standby, Normal Slope, and Low Slope. It also covers specific application configurations for both slave and master nodes, EMC considerations such as EME slope control, and fault management strategies for scenarios like LIN bus-to-ground shorts. This manual is written in Chinese.
Philips TJA1020 specifications
| Maximum Baud Rate | 20kBaud |
|---|---|
| Maximum Nodes | 16 |
| Operating Voltage Range | 5V to 27V |
| Low Slope Mode Threshold | <10kBaud |
All Philips TJA1020 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum baud rate supported by the TJA1020?
The TJA1020 is suitable for LIN transmission rates up to 20kBaud.
How many nodes can be supported in a TJA1020 network?
The network can support up to 16 nodes.
What is the maximum baud rate supported by this transceiver?
The device supports baud rates up to 20 Kbaud.
What are the minimum and maximum supply voltages for pin BAT?
The supply voltage on pin BAT ranges from a minimum of 5 V to a maximum of 27 V.
What is the maximum baud rate supported by the TJA1020?
The TJA1020 supports baud rates up to 20 Kbaud.
Does the TJA1020 support both 3.3V and 5V devices?
Yes, the input levels are compatible with both 3.3 and 5 V devices.
