Start here

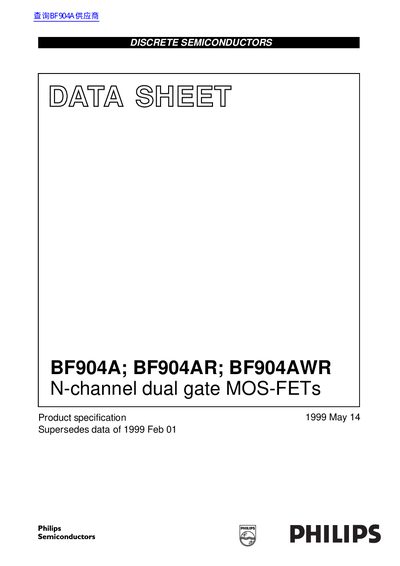

Philips BF904A/BF904AR/BF904AWR N-channel Dual Gate MOS-FETs Datasheet
This datasheet provides technical specifications for the Philips BF904A, BF904AR, and BF904AWR, which are N-channel dual gate MOS-FETs. These devices are specially designed for use at 5 V supply voltage and feature a short channel design with high transfer admittance to input capacitance ratio. They are intended for low noise gain controlled amplifier applications up to 1 GHz.
Read onlinePhilips BF904 specifications
| Drain-source voltage | 7 V |
|---|---|
| Drain current | 30 mA |
| Total power dissipation | 200 mW |
| Forward transfer admittance | 25 mS |
| Input capacitance at gate 1 | 2.6 pF |
| Reverse transfer capacitance | 35 pF |
| Noise figure | 2 dB |
| Operating junction temperature | 150 °C |
Source: Philips BF904A/BF904AR/BF904AWR N-channel Dual Gate MOS-FETs Datasheet
All Philips BF904 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these MOS-FETs?
They are designed for VHF and UHF applications with 3 to 7 V supply voltage, such as television tuners and professional communications equipment.
From: Philips BF904A/BF904AR/BF904AWR N-channel Dual Gate MOS-FETs Datasheet
What is the maximum supply voltage?
The devices are specially designed for use at a 5 V supply voltage.
From: Philips BF904A/BF904AR/BF904AWR N-channel Dual Gate MOS-FETs Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: Philips BF904; BF904R N-channel Dual Gate MOS-FETs Data Sheet
What supply voltage is this transistor specially designed for?
The product is specially designed for use at 5 V supply voltage.
From: Philips BF904; BF904R N-channel Dual Gate MOS-FETs Data Sheet
What is the BF904WR designed for?
It is specially designed for use at 5 V supply voltage.
What are the applications for this device?
It is used in VHF and UHF applications such as television tuners and professional communications equipment.
