Start here

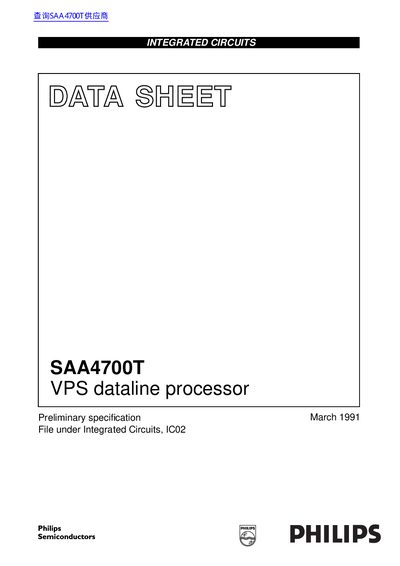

Philips SAA4700T VPS Dataline Processor Datasheet
The SAA4700T is a bipolar integrated circuit designed for use in dataline receivers. It incorporates a dataline slicer and decoder to extract dataline signals from video signals and regenerate the data clock. The device provides signals for decoding binary data transmitted in line 16 of the composite video signal, supporting VPS and VPT systems for programming video cassette recorders.
Read onlinePhilips SAA4700 specifications
| Supply Voltage | 4.5 to 5.5 V |
|---|---|
| Total Supply Current | 18 to 23 mA |
| Operating Temperature | 0 to +70 °C |
| Package Type | SOT163A |
All Philips SAA4700 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the SAA4700T?
It is a bipolar integrated circuit designed for use in dataline receivers, incorporating a dataline slicer and decoder.
How does the device handle the data line?
The slicer extracts the dataline signal from the video signal and regenerates the data clock.
How is the SAA4700 powered?
It requires separate supply voltages for the analog and digital parts, with pins 15 and 16 tied together for operation.
What is the output of the DAV pin?
The data available output is set LOW after an error-free dataline 16 is received.
