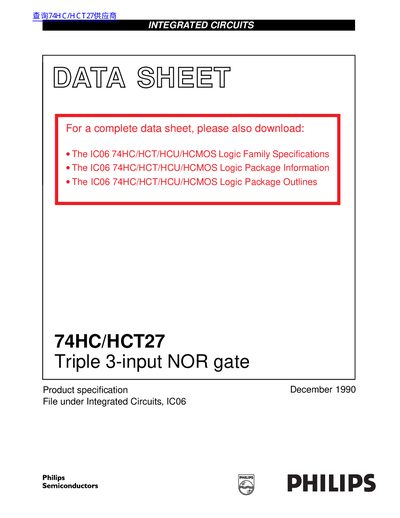

Philips 74HC/HCT27 Triple 3-input NOR Gate Datasheet
The Philips 74HC/HCT27 is a high-speed Si-gate CMOS device that provides the 3-input NOR function. It is pin compatible with low power Schottky TTL (LSTTL) and is specified in compliance with JEDEC standard no. 7A.
The document details the electrical characteristics, including propagation delay and input capacitance, for both the 74HC and 74HCT variants under various temperature conditions. It also includes pin descriptions, logic symbols, functional diagrams, and ordering information.
Philips HCT27 specifications
| Function | Triple 3-input NOR gate |
|---|---|
| Technology | High-speed Si-gate CMOS |
| Input Capacitance | 3.5 pF |
| Power Dissipation Capacitance | 24 pF |
| Icc Category | SSI |
Source: Philips 74HC/HCT27 Triple 3-input NOR Gate Datasheet
