Start here

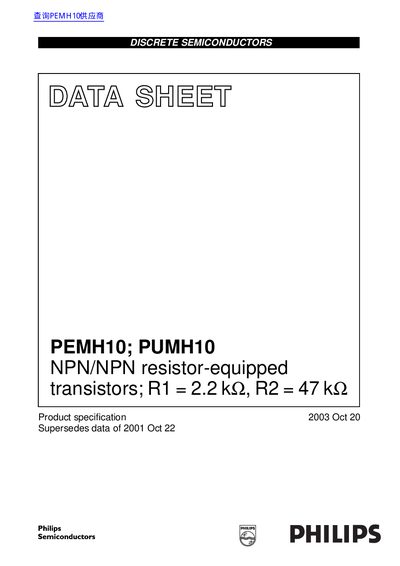

Philips PEMH10/PUMH10 NPN Resistor-Equipped Transistors Data Sheet
The document describes the PEMH10 and PUMH10 series of NPN/NPN resistor-equipped transistors, which integrate R1 (2.2 kΩ) and R2 (47 kΩ) bias resistors to reduce component count and simplify digital applications. These devices are designed as low-current peripheral drivers or replacements for general-purpose transistors in IC input control circuits.
The datasheet provides comprehensive technical specifications, including limiting values such as a maximum collector-emitter voltage of 50 V and an output current of 100 mA. It also details thermal characteristics, electrical parameters like DC current gain, and package outlines for the SOT666 (PEMH10) and SOT363 (PUMH10) surface-mounted packages.
Philips PEMH1 specifications
| Collector-emitter voltage (VCEO) | 50 V |
|---|---|
| Output current (DC) and peak collector current | -100 mA |
| R1 bias resistor value | 2.2 kΩ |
| R2 bias resistor value | 47 kΩ |
| Total power dissipation (SOT363) | 200 mW |
| DC current gain (hFE) | 100 |
Source: Philips PEMH10/PUMH10 NPN Resistor-Equipped Transistors Data Sheet
All Philips PEMH1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types?
The PEMH10 is available in the SOT666 package, while the PUMH10 uses the SOT363 package.
From: Philips PEMH10/PUMH10 NPN Resistor-Equipped Transistors Data Sheet
What is the maximum operating ambient temperature?
The device can operate in an ambient temperature range from -65 °C to +150 °C.
From: Philips PEMH10/PUMH10 NPN Resistor-Equipped Transistors Data Sheet
What are the applications of the PEMH1 and PUMH1 transistors?
They are used as low current peripheral drivers, replacements for general purpose transistors in digital applications, and for controlling IC inputs.
From: Philips PEMH1; PUMH1 NPN/NPN Resistor-Equipped Transistors Datasheet
What are the available package types for these transistors?
The devices are available in two plastic surface mounted packages: SOT666 (6 leads) and SOT363 (SC-88).
From: Philips PEMH1; PUMH1 NPN/NPN Resistor-Equipped Transistors Datasheet
