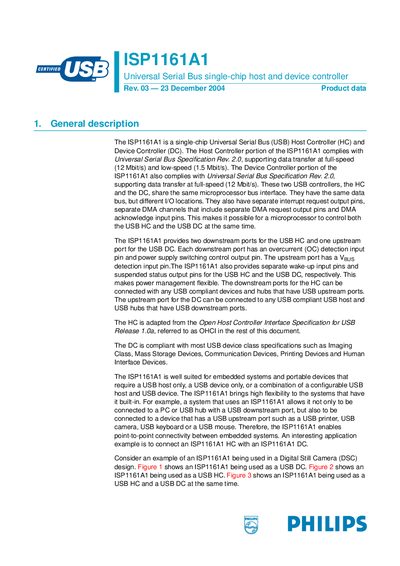

Philips ISP1161A1 USB Host and Device Controller Datasheet
The ISP1161A1 is a single‑chip USB controller that integrates both a host controller (HC) and a device controller (DC) on the same die. It complies with USB Specification Rev. 2.0, offering full‑speed (12 Mbit/s) and low‑speed (1.5 Mbit/s) operation for the host side and full‑speed for the device side. The chip provides two downstream ports for the host and one upstream port for the device, with separate I/O, DMA channels and interrupt pins for each function.
The device is targeted at embedded systems such as PDAs, digital cameras, set‑top boxes and other portable electronics. It supports up to 14 programmable USB endpoints, on‑chip FIFO buffers (4 kB for HC, 2.5 kB for DC), a 6 MHz crystal oscillator with PLL, and can operate from either a 5 V or 3.3 V supply. It is offered in LQFP64 packages (SOT314‑2 and SOT414‑1) and operates over a temperature range of –40 °C to +85 °C.
Philips ISP1161A specifications
| Supported USB speeds (host) | Full‑speed 12 Mbit/s, Low‑speed 1.5 Mbit/s |
|---|---|
| Maximum data‑transfer rate (host to MCU) | 15 Mbyte/s |
| Maximum data‑transfer rate (device to MCU) | 11.1 Mbyte/s |
| Number of programmable USB endpoints | Up to 14 |
| FIFO buffer RAM (host) | 4 kbytes |
| Clock oscillator | 6 MHz crystal with integrated PLL |
| Programmable clock output range | 3 MHz to 48 MHz |
| Supply voltage | 3.3 V or 5 V |
| Operating temperature range | -40 °C to +85 °C |
| Package options | LQFP64 (SOT314‑2, SOT414‑1) |
Source: Philips ISP1161A1 USB Host and Device Controller Datasheet
All Philips ISP1161A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What USB speeds does the ISP1161A1 support as a host?
It supports full‑speed (12 Mbit/s) and low‑speed (1.5 Mbit/s) USB transfers.
From: Philips ISP1161A1 USB Host and Device Controller Datasheet
How many downstream ports are provided for the host side?
The chip provides two selectable downstream ports for the host controller.
From: Philips ISP1161A1 USB Host and Device Controller Datasheet
How many downstream ports are available on the ISP1161A host controller?
The host controller can be configured with either one or two downstream ports.
From: Philips ISP1161A Full-speed USB Host and Device Controller Datasheet
Which package options are offered for the ISP1161A?
The chip is offered in LQFP64 packages: SOT314‑2 and SOT414‑1.
From: Philips ISP1161A Full-speed USB Host and Device Controller Datasheet
