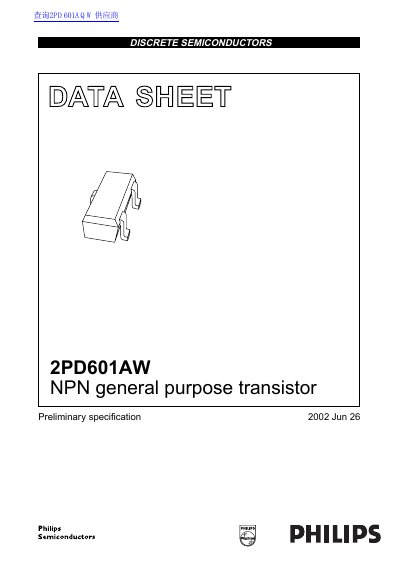

Philips 2PD601AW NPN General Purpose Transistor Datasheet
This document is a preliminary datasheet for the Philips 2PD601AW, an NPN general-purpose transistor designed for switching and amplification applications. The device is housed in an SC-70 (SOT323) plastic surface-mounted package.
Key specifications include a maximum collector current of 100 mA and a low collector-emitter saturation voltage of up to 500 mV. The datasheet provides detailed limiting values, thermal characteristics such as junction-to-ambient resistance, electrical parameters like DC current gain (hFE), and the physical package outline dimensions.
Philips 2PD601A specifications
| Collector current (DC) | 100 mA |
|---|---|
| Collector-emitter saturation voltage | 500 mV |
| Package type | SC-70 (SOT323) |
| Collector-base voltage | 60 V |
| Total power dissipation | 200 mW |
Source: Philips 2PD601AW NPN General Purpose Transistor Datasheet
All Philips 2PD601A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for this transistor?
It is intended for general purpose switching and amplification.
From: Philips 2PD601AW NPN General Purpose Transistor Datasheet
Is there a PNP complement available?
Yes, the PNP complement model is 2PB709AW.
From: Philips 2PD601AW NPN General Purpose Transistor Datasheet
What is the maximum collector current for this transistor?
The maximum DC collector current is 100 mA.
From: Philips 2PD601A NPN General Purpose Transistor Datasheet
What is the maximum total power dissipation?
The maximum total power dissipation is 250 mW.
From: Philips 2PD601A NPN General Purpose Transistor Datasheet
