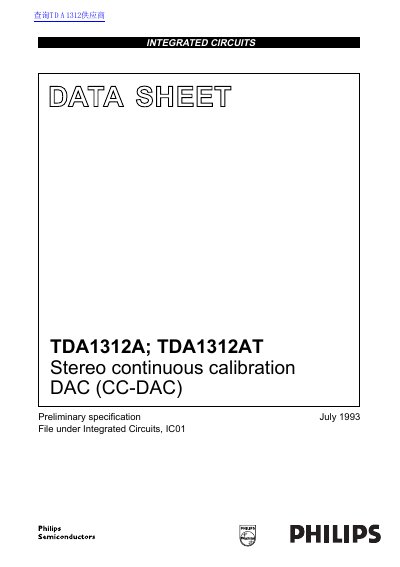

PHILIPS TDA1311A TDA1312AT Stereo Continuous Calibration DAC handbook
The document is a preliminary specification sheet for the TDA1312A and TDA1312AT, voltage-driven D/A converters utilizing Continuous Calibration (CC) technology. These devices are designed for portable digital audio equipment, offering features such as 8x oversampling, wide dynamic range with 16-bit resolution, and compatibility with various input formats including time multiplexed and two's complement.
Read onlinePhilips TDA1311A specifications
| Supply Voltage (VDD) | 4 to 5.5 V |
|---|---|
| Full Scale Output Voltage (VFS) | 1.8 to 2.2 V |
| Total Harmonic Distortion plus Noise (THD+N) | -63 dB at 0 dB signal level |
| Signal-to-Noise Ratio (S/N) | 92 dB A-weighted |
| Clock Frequency (fBCK) | 18.4 MHz |
| Operating Temperature Range | -40°C to +85°C |
Source: PHILIPS TDA1311A TDA1312AT Stereo Continuous Calibration DAC handbook
All Philips TDA1311A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the continuous calibration concept?
The device uses an internal charge storage principle where the largest bit-currents are repeatedly generated by a single current reference source, ensuring accuracy insensitive to ageing and temperature variations.
From: PHILIPS TDA1311A TDA1312AT Stereo Continuous Calibration DAC handbook
What input formats are compatible?
The device is compatible with most current Japanese input formats including time multiplexed, two's complement, and TTL.
From: PHILIPS TDA1311A TDA1312AT Stereo Continuous Calibration DAC handbook
What are the available package types for this device?
The TDA1311A is available in SO8 or DIP8 plastic packages.
From: Philips TDA1311A Stereo Continuous Calibration DAC Datasheet
Does the datasheet contain final product specifications?
No, this document contains preliminary data and target specifications for product development.
From: Philips TDA1311A Stereo Continuous Calibration DAC Datasheet
