Key facts
- Brand
- Philips
- Model
- 74F10
- Category
- INTEGRATED CIRCUITS
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-06
Start here

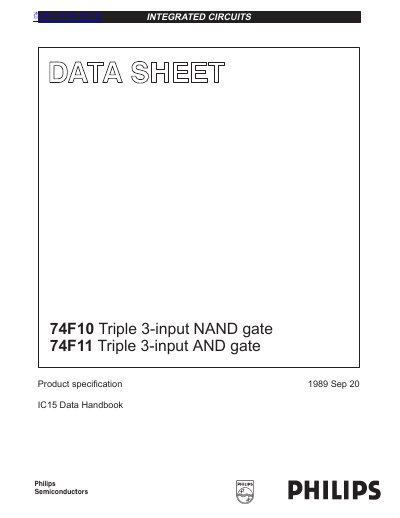

Philips 74F10/74F11 Triple 3-Input NAND/AND Gate Datasheet
This document is a product specification datasheet for the Philips 74F10 and 74F11 integrated circuits. It covers the 74F10, a Triple 3-input NAND gate, and the 74F11, a Triple 3-input AND gate. The document provides typical ordering information, including supply voltage, current consumption, and available package types such as 14-pin plastic DIP and 14-pin plastic SO.
Read onlinePhilips 74F10 specifications
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
|---|---|
| Operating Temperature (Industrial) | -40°C to +85 °C |
| Total Supply Current (Typical) | 12.3 mA |
Source: Philips 74F109 Positive J-K Flip-Flops Product Specification
All Philips 74F10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types?
The devices are available in 14-pin plastic DIP and 14-pin plastic SO packages.
From: Philips 74F10/74F11 Triple 3-Input NAND/AND Gate Datasheet
What is the maximum operating temperature?
The maximum operating free-air temperature is +70 °C.
From: Philips 74F10/74F11 Triple 3-Input NAND/AND Gate Datasheet
Can the J and K inputs be tied together?
Yes, tying the J and K inputs together allows the device to operate as a D flip-flop.
From: Philips 74F109 Positive J-K Flip-Flops Product Specification
Are Set and Reset inputs synchronous or asynchronous?
Set (SD) and Reset (RD) are asynchronous active low inputs that operate independently of the clock.
From: Philips 74F109 Positive J-K Flip-Flops Product Specification
