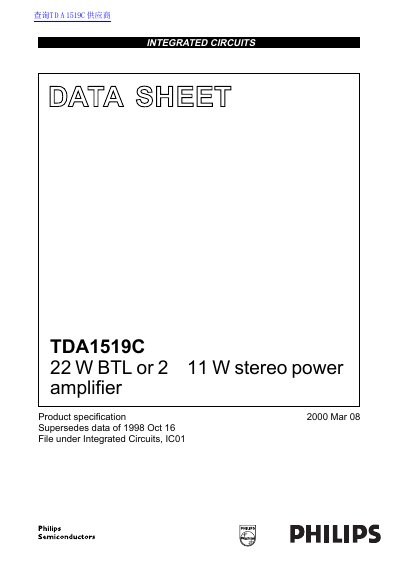

Philips TDA1519C 22 W BTL or 2 x 11 W Stereo Power Amplifier Datasheet
The TDA1519C is an integrated class-B dual output amplifier designed for stereo or Bridge-Tied Load (BTL) applications. It features high output power, low offset voltage, and includes protection against load dumps, short circuits, and reverse polarity. The device is available in 9-lead plastic single in-line power packages and 20-lead heatsink small outline packages.
Read onlinePhilips TDA1519 specifications
| Supply Voltage (Operating) | 6.0 to 17.5 V |
|---|---|
| Total Quiescent Current | 40 to 80 mA |
| Output Power (BTL, 4Ω, 10% THD) | 22 W |
| Gain | 40 dB |
| Junction Temperature | 150 °C |
Source: Philips TDA1519C 22 W BTL or 2 x 11 W Stereo Power Amplifier Datasheet
All Philips TDA1519 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types for the TDA1519C?
The device is available in a 9-lead plastic single in-line power package and a 20-lead heatsink small outline package.
From: Philips TDA1519C 22 W BTL or 2 x 11 W Stereo Power Amplifier Datasheet
Is the TDA1519C compatible with the TDA1519B?
Yes, the TDA1519C is pin compatible with the TDA1519B.
From: Philips TDA1519C 22 W BTL or 2 x 11 W Stereo Power Amplifier Datasheet
What is the maximum operating supply voltage?
The device can operate with a supply voltage up to 18 V.
How much output power does it deliver in BTL mode?
It provides 12 W of output power when used in Bridge Tied Load configuration.
What is the gain of the TDA1519?
The gain of each amplifier is fixed at 40 dB.
From: Philips TDA1519 Stereo Car Radio Power Amplifier Datasheet
Is the TDA1519 compatible with the TDA1517?
Yes, it is compatible with the TDA1517, except for the gain.
From: Philips TDA1519 Stereo Car Radio Power Amplifier Datasheet
