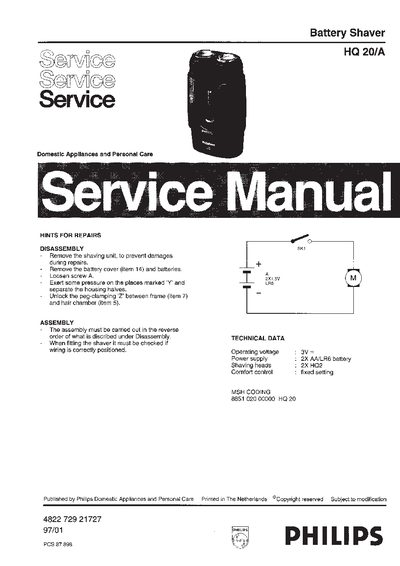

Philips HQ 20/A Battery Shaver Service Manual
This service manual provides detailed repair instructions for the Philips HQ 20/A battery shaver. It includes safety hints, step‑by‑step disassembly and re‑assembly procedures, and guidance on checking wiring and component placement.
Technical data such as operating voltage, battery type, and shaving head configuration are listed, along with a parts list identifying each component by reference number.
Philips HQ 20 specifications
| Operating voltage | 3 V |
|---|---|
| Power supply | 2 × AA/LR6 batteries |
| Shaving heads | 2 × HQ2 |
| Comfort control | fixed setting |
All Philips HQ 20 documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How do I safely disassemble the Philips HQ 20/A shaver?
First remove the shaving unit, then take off the battery cover (item 14) and batteries before loosening screw A.2×15 and separating the housing halves.
What is the operating voltage of the shaver?
The shaver operates at 3 V.
How do you fill the cleaning fluid container for Jet Clean I?
Remove the container, take off the dosing cap, open the bottle, fill the container with HQ200 cleaning fluid, tightly screw the dosing cap back on, and reinstall the container in the machine.
From: Jet Clean HQ200 Cleaning Solution Filling Instructions
How do you fill the cleaning chamber for Jet Clean II?
Press the release buttons on both sides, lift the machine, unscrew the dosing cap, fill the cleaning chamber with HQ200 cleaning fluid up to the MAX indication, then place the machine back onto the chamber.
From: Jet Clean HQ200 Cleaning Solution Filling Instructions
