Key facts
- Brand
- Philips
- Model
- BLF2047
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-06
Start here

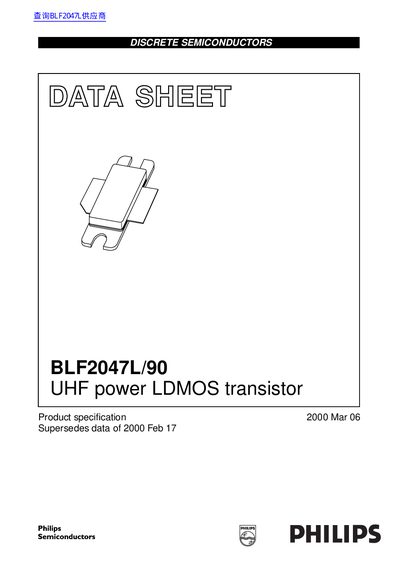

Philips BLF2047L/90 UHF Power LDMOS Transistor Data Sheet
Datasheet 12 pages · 107 KB · EN
This document is a product specification datasheet for the BLF2047L/90, an N-channel enhancement mode lateral D-MOS transistor designed for broadband operation between 1.8 and 2.0 GHz. It features high power gain, easy power control, and excellent ruggedness suitable for common source class-AB operations in PCN and PCS applications.
Read onlinePhilips BLF2047 specifications
| Frequency range | 1.8 to 2.0 GHz |
|---|---|
| Storage temperature | -65 to +150 °C |
| Junction temperature | 200 °C |
Source: Philips BLF2047L/90 UHF Power LDMOS Transistor Data Sheet
All Philips BLF2047 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The maximum junction temperature is 200 °C.
From: Philips BLF2047L/90 UHF Power LDMOS Transistor Data Sheet
What is the primary application for the BLF2047 transistor?
It is designed for common source class-AB operation for PCN and PCS applications in the 1800 to 2200 MHz frequency range.
What is the maximum junction temperature?
The maximum junction temperature is 200 °C.
