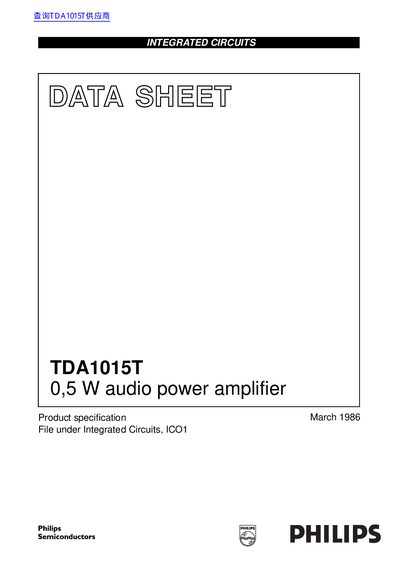

Philips TDA1015T 0.5 W Audio Power Amplifier Datasheet
The Philips TDA1015T is a low-cost audio amplifier IC designed for portable applications such as radios and recorders. It features a separated preamplifier and power amplifier stage, offering a total output power of up to 0.5 W into a 16 Ω load at a supply voltage of 9 V. The device operates with a minimum supply voltage of 3.6 V and includes short-circuit protection.
Read onlinePhilips TDA1015 specifications
| Supply voltage range | 3.6 to 12 V |
|---|---|
| Peak output current | 1 A |
| Voltage gain (power amplifier) | 29 dB |
| Operating ambient temperature | -26 to +150 °C |
| Package type | 8-lead mini-pack |
Source: Philips TDA1015T 0.5 W Audio Power Amplifier Datasheet
All Philips TDA1015 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum supply voltage requirement?
The IC has a very low supply voltage requirement of 3.6 V minimum.
From: Philips TDA1015T 0.5 W Audio Power Amplifier Datasheet
Is the amplifier short-circuit protected?
Yes, the amplifier is short-circuit protected.
From: Philips TDA1015T 0.5 W Audio Power Amplifier Datasheet
What is the maximum supply voltage?
The maximum supply voltage is 18 V.
From: Philips TDA1015 1 to 4 W Audio Power Amplifier Product Specification
Is a heatsink required?
No external heatsink is required because the package thermal resistance is 45 K/W.
From: Philips TDA1015 1 to 4 W Audio Power Amplifier Product Specification
