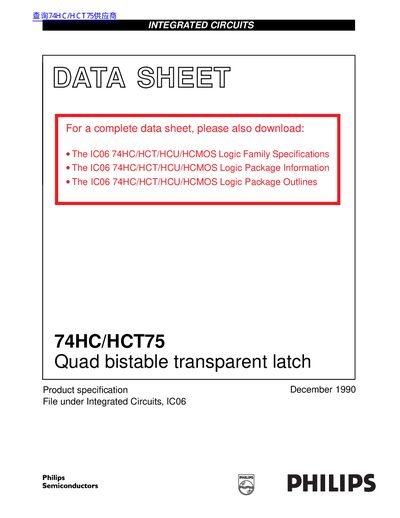

Philips 74HC/HCT75 Quad Bistable Transparent Latch Datasheet
This document is a product specification datasheet for the Philips 74HC/HCT75, a high-speed Si-gate CMOS device featuring four bistable latches. The device is pin compatible with low power Schottky TTL (LSTTL) and is specified in compliance with JEDEC standard no. 7A.
Read onlinePhilips HCT75 specifications
| Number of Latches | Four |
|---|---|
| Output Capability | Standard |
| IC Category | MSI |
| Input Capacitance | 3.5 pF |
| Power Dissipation Capacitance | 42 pF |
Source: Philips 74HC/HCT75 Quad Bistable Transparent Latch Datasheet
All Philips HCT75 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature range for the 74HC/HCT75?
The device is specified for operation from -40 to +125 °C.
From: Philips 74HC/HCT75 Quad Bistable Transparent Latch Datasheet
What is the maximum propagation delay from data input to output for the 74HCT version?
The maximum propagation delay is 42 ns.
From: Philips 74HC/HCT75 Quad Bistable Transparent Latch Datasheet
What is the function of the OE inputs?
The output enable inputs (OE) control the 3-state outputs; a HIGH on OE causes the outputs to assume a high impedance OFF-state.
From: PHILIPS 74HC/HCT7541 Octal Schmitt trigger buffer/line driver; 3-state handbook
How does the Schmitt trigger action benefit this device?
The Schmitt trigger action transforms slowly changing input signals into sharply defined jitter-free output signals.
From: PHILIPS 74HC/HCT7541 Octal Schmitt trigger buffer/line driver; 3-state handbook
