Start here

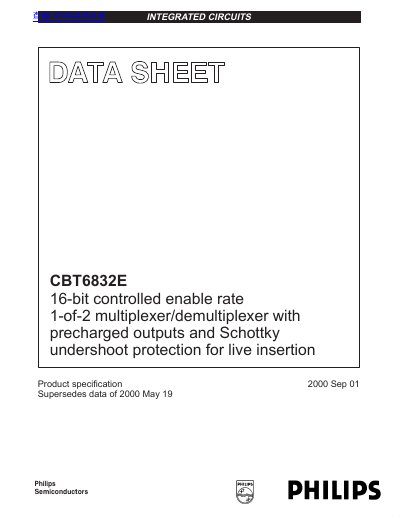

Philips CBT6832E 16-bit Multiplexer/Demultiplexer Datasheet
The CBT6832E is an integrated circuit designed for PCI hot-plugging applications. It functions as a bidirectional switch that can demultiplex to either of two channels or both simultaneously. Key features include Schottky undershoot protection on the A port, near-zero propagation delay, and a controlled enable rate.
Read onlinePhilips CBT6832 specifications
| Bandwidth | 100 MHz |
|---|---|
| Operating voltage range | +4.5 V to +5.5 V |
| Package type | 56-pin TSSOP |
| ESD protection (HBM) | > 2000 V |
Source: Philips CBT6832E 16-bit Multiplexer/Demultiplexer Datasheet
All Philips CBT6832 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for this multiplexer?
The device operates with a supply voltage between +4.5 V and +5.5 V.
From: Philips CBT6832E 16-bit Multiplexer/Demultiplexer Datasheet
How much current can the output handle in a low state?
The DC output current is rated for a maximum of 120 mA when the output is in a Low state.
From: Philips CBT6832E 16-bit Multiplexer/Demultiplexer Datasheet
What is the operating voltage range for the CBT6832D?
The device operates with a supply voltage between +4.5 V and +5.5 V.
From: Philips CBT6832D 16-bit Multiplexer/Demultiplexer Datasheet
What is the typical propagation delay of the CBT6832D?
The typical propagation delay is 250 ps.
From: Philips CBT6832D 16-bit Multiplexer/Demultiplexer Datasheet
What is the maximum operating temperature for the CBT6832C?
The device operates within a free-air temperature range of 0°C to +70°C.
From: Philips CBT6832C 16-bit Multiplexer/Demultiplexer Datasheet
What is the minimum DC supply voltage required for operation?
The recommended minimum DC supply voltage is 4.5 V.
From: Philips CBT6832C 16-bit Multiplexer/Demultiplexer Datasheet
