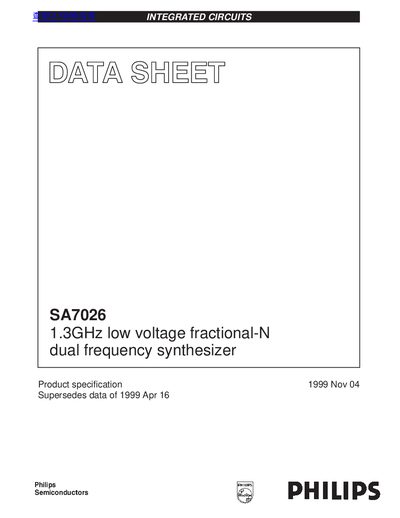

Philips SA7026 1.3GHz Low Voltage Fractional‑N Dual Synthesizer Datasheet
The SA7026 is a BICMOS fractional‑N synthesizer designed for pocket‑phone and other low‑power wireless applications. It integrates programmable main, auxiliary and reference dividers, charge pumps, and a phase‑frequency detector, all operable from a 3 V supply.
Key features include a wide input frequency range (350‑1300 MHz VCO, 10‑550 MHz auxiliary, 5‑40 MHz reference), low phase noise, fast locking, split supply operation, and programmable dividers with ratios up to 65535. The device is supplied in a TSSOP20 package and operates from –40 °C to +85 °C.
Philips SA702 specifications
| Digital supply voltage (Vop) | 2.7 V – 5.5 V |
|---|---|
| Total supply current (main + aux on) | up to 8.8 mA |
| VCO input frequency range | 350 MHz – 1300 MHz |
| Auxiliary input frequency range | 10 MHz – 550 MHz |
| Maximum phase comparator frequency | 4 MHz |
| Operating ambient temperature | -40 °C to +85 °C |
Source: Philips SA7026 1.3GHz Low Voltage Fractional‑N Dual Synthesizer Datasheet
All Philips SA702 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the SA7026?
Both the digital (Vop) and analog (Vopcp) supplies operate from 2.7 V to 5.5 V.
From: Philips SA7026 1.3GHz Low Voltage Fractional‑N Dual Synthesizer Datasheet
What is the input frequency range of the SA7026?
The VCO input covers 350 MHz to 1300 MHz, the auxiliary input 10 MHz to 550 MHz, and the reference input 5 MHz to 40 MHz.
From: Philips SA7026 1.3GHz Low Voltage Fractional‑N Dual Synthesizer Datasheet
What is the supply voltage range for the SA702?
The SA702 operates with a supply voltage (Voc) from –0.3 V to +7.0 V.
From: Philips SA702 Triple Modulus Low Power ECL Prescaler Datasheet
What are the ordering codes for the SA702 DIP and SO packages?
The 8‑pin DIP version uses order code SA702N 0404B, and the 8‑pin SO version uses SA702D 0174C.
From: Philips SA702 Triple Modulus Low Power ECL Prescaler Datasheet
