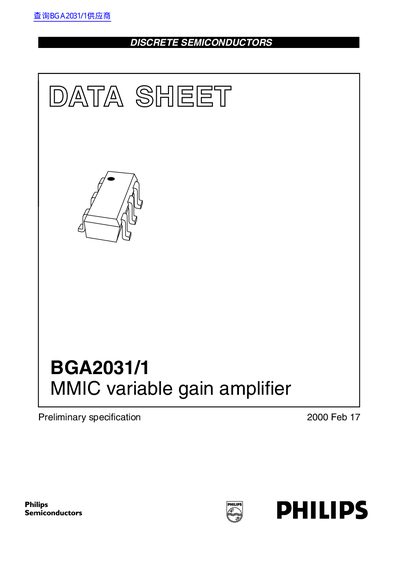

Philips BGA2031/1 MMIC Variable Gain Amplifier Preliminary Specification Data Sheet
This document is a preliminary specification datasheet for the Philips BGA2031/1, an MMIC variable gain amplifier. It describes the device as a two-stage silicon monolithic microwave integrated circuit suitable for low voltage and medium power driver applications in systems requiring good linearity, such as CDMA cellular band (850 MHz) and PCS (1.9 GHz).
Read onlinePhilips BGA2031 specifications
| Package type | 6-pin SOT363 plastic SMD package |
|---|---|
| Supply voltage range | 2.7 V to 3.3 V |
| Frequency range (PCS) | 1850 - 1950 MHz |
| Frequency range (Cellular) | 824 - 849 MHz and 836 MHz |
| Power gain (typical) | 23 dB at 1.9 GHz, 24 dB at 836 MHz |
| Gain control range | 0 to 56 dB (typical) |
Source: Philips BGA2031/1 MMIC Variable Gain Amplifier Preliminary Specification Data Sheet
All Philips BGA2031 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of this amplifier?
It serves as a general purpose variable gain amplifier for low voltage and medium power driver applications in systems requiring good linearity, such as CDMA.
From: Philips BGA2031/1 MMIC Variable Gain Amplifier Preliminary Specification Data Sheet
What is the supply current at 3V with no load?
The typical supply current into pins 3 and 4 is 51 mA when VCTRL=2.7V.
From: Philips BGA2031/1 MMIC Variable Gain Amplifier Preliminary Specification Data Sheet
What is the primary application of the BGA2031?
It is a general purpose variable gain amplifier for low voltage and medium power applications, or a driver for power amplifiers in systems requiring good linearity like CDMA.
From: Philips BGA2031 MMIC Variable Gain Amplifier Datasheet
What is the supply voltage range?
The supply voltages range from 2.7 V to 4.1 V.
From: Philips BGA2031 MMIC Variable Gain Amplifier Datasheet
