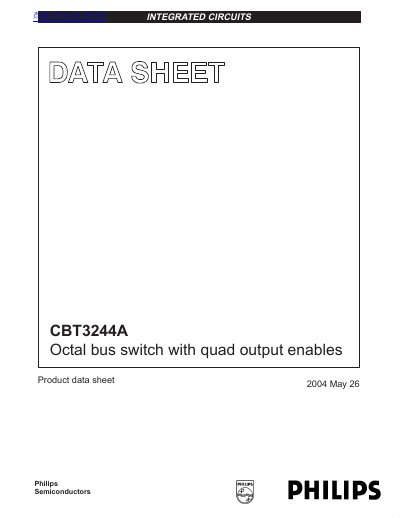

Philips CBT3244A Octal Bus Switch Product Data Sheet
The Philips CBT3244A is an octal bus switch with quad output enables designed for high-speed TTL-compatible bus switching. The device is organized as two 4-bit low-impedance switches with separate output-enable inputs, allowing data to flow between two ports or enter a high-impedance state.
Read onlinePhilips CBT3244 specifications
| Organization | Two 4-bit low-impedance switches |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Supply Voltage | 4.5 V to 5.5 V |
| Output Enable Time | 1.0 to 5.6 ns |
Source: Philips CBT3244A Octal Bus Switch Product Data Sheet
All Philips CBT3244 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the pinout standard for the CBT3244A?
The device uses a standard ’244-type pinout.
What are the package options available?
Available packages include plastic small outline (D), shrink small outline (DB), QSOP (DS), and thin shrink small outline (TSSOP).
What is the pinout compatibility of the CBT3244?
The device uses a standard '244-type pinout.
From: Philips CBT3244 Octal Bus Switch with Quad Output Enables Datasheet
Is the CBT3244 functionally equivalent to another model?
Yes, it is functionally equivalent to the QS3244.
From: Philips CBT3244 Octal Bus Switch with Quad Output Enables Datasheet
