Key facts
- Brand
- Philips
- Model
- TJA1050
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-04
Start here

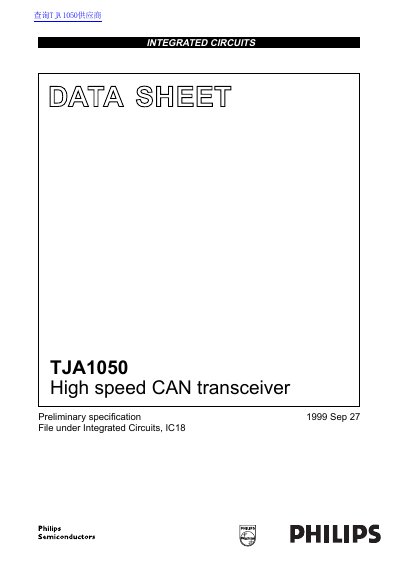

Philips Semiconductors TJA1050 High Speed CAN Transceiver Datasheet
Datasheet 16 pages · 81 KB · EN
The TJA1050 is a high-speed CAN transceiver designed as an interface between a CAN protocol controller and the physical bus. It is fully compatible with the 'ISO 11898' standard and supports baud rates from 40 kbaud up to 1 Mbaud, making it suitable for automotive applications.
Read onlinePhilips TJA1050 specifications
| Supply Voltage (VCC) | 4.75 to 5.25 V |
|---|---|
| Maximum Baud Rate | 1 Mbaud |
| Operating Ambient Temperature | -40 to +125 °C |
| Maximum Nodes Supported | At least 110 nodes |
Source: Philips Semiconductors TJA1050 High Speed CAN Transceiver Datasheet
All Philips TJA1050 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum transmission speed of the TJA1050?
The device supports high speeds up to 1 Mbaud.
From: Philips Semiconductors TJA1050 High Speed CAN Transceiver Datasheet
Is the TJA1050 compatible with ISO 11898?
Yes, it is fully compatible with the 'ISO 11898' standard.
From: Philips Semiconductors TJA1050 High Speed CAN Transceiver Datasheet
