Start here

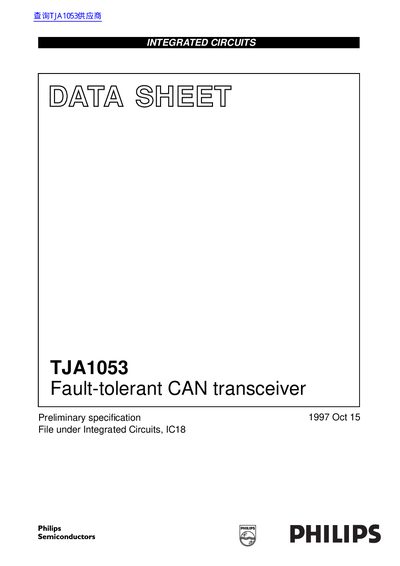

Philips TJA1053 Fault-tolerant CAN Transceiver Data Sheet
The Philips TJA1053 is a fault-tolerant CAN transceiver optimized for in-car low-speed communication applications up to 125 kbaud. It serves as the interface between the CAN protocol controller and the physical bus, providing differential transmit and receive capabilities while supporting unshielded bus wires.
Read onlinePhilips TJA1053 specifications
| Baud rate | up to 125 kbaud |
|---|---|
| Maximum nodes | 32 |
| Supply voltage (VCC) | 4.75 V to 5.25 V |
| Operating ambient temperature | -40°C to +125°C |
| Package type | SO14 plastic small outline package |
Source: Philips TJA1053 Fault-tolerant CAN Transceiver Data Sheet
All Philips TJA1053 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum baud rate supported?
The device supports a baud rate up to 125 kbaud.
From: Philips TJA1053 Fault-tolerant CAN Transceiver Data Sheet
How many nodes can be connected?
Up to 32 nodes can be connected to the bus.
From: Philips TJA1053 Fault-tolerant CAN Transceiver Data Sheet
What causes no communication when CANH is shorted to VCC?
Only the TJA1054 tolerates a CANH‑to‑VCC short circuit; the PCA82C252 and TJA1053 do not support this condition.
From: Philips PCA82C252 / TJA1053 / TJA1054 / TJA1054A Application Note
How can I reduce current consumption in low‑power modes?
The TJA1054 operates down to 5 V and its low‑power current is about 30 µA, compared with 70 µA for the TJA1053, providing lower standby consumption.
From: Philips PCA82C252 / TJA1053 / TJA1054 / TJA1054A Application Note
