Start here

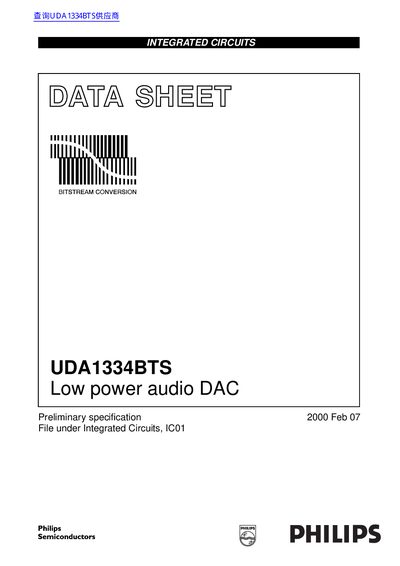

Philips UDA1334BTS Low Power Audio DAC Preliminary Specification
This document is a preliminary specification datasheet for the Philips UDA1334BTS, an integrated circuit designed as a low-power audio Digital-to-Analog Converter (DAC). The device supports sample frequencies from 8 to 100 kHz and includes built-in digital sound processing features such as de-emphasis and mute control. It is available in an SSOP-16 package.
Read onlinePhilips UDA1334BT specifications
| Power supply voltage (analog/digital) | 1.8 to 3.6 V |
|---|---|
| Sample frequencies support | 8 to 100 kHz |
| Package type | SSOP-16 |
Source: Philips UDA1334BTS Low Power Audio DAC Preliminary Specification
All Philips UDA1334BT documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power consumption in sleep mode with no clock running?
The digital supply current is 20 µA when the device is in sleep mode with no clock running.
From: Philips UDA1334BTS Low Power Audio DAC Preliminary Specification
Does this DAC require analog post-filtering?
No, no analog post filtering is required for the DAC due to its inherent filter function.
From: Philips UDA1334BTS Low Power Audio DAC Preliminary Specification
What is the operating mode of the UDA1334BT?
The device operates in slave mode only, meaning the system must provide the system clock and digital audio interface signals.
Does the DAC require post-filtering?
No, no analog post filtering is required for the DAC due to its inherent filter function.
