Start here

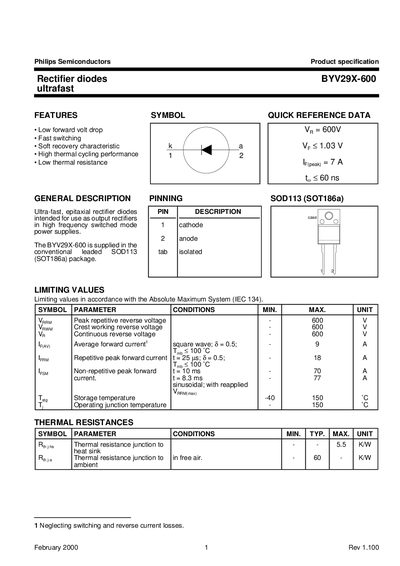

Philips BYV29X-600 Ultrafast Rectifier Diode Datasheet
The BYV29X-600 is an ultrafast, epitaxial rectifier diode intended for use as an output rectifier in high‑frequency switched‑mode power supplies. It is supplied in a conventional leaded SOD113 (SOT186a) isolated package.
The datasheet lists key electrical parameters such as a typical forward voltage of 0.90 V at 8 A, a peak repetitive reverse voltage of 600 V, and thermal characteristics including a junction‑to‑heatsink resistance of 5.5 K/W. Mechanical data, isolation limits and operating temperature ranges are also provided.
Philips BYV29X specifications
| Peak repetitive reverse voltage | 600 V |
|---|---|
| Typical forward voltage (20 A) | 1.30 V |
| Thermal resistance junction‑to‑heatsink | 5.5 K/W |
| Storage temperature range | -40 °C to 150 °C |
Source: Philips BYV29X-600 Ultrafast Rectifier Diode Datasheet
All Philips BYV29X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum repetitive reverse voltage of the BYV29X-600?
The device can withstand a peak repetitive reverse voltage of 600 V.
From: Philips BYV29X-600 Ultrafast Rectifier Diode Datasheet
What is the thermal resistance from junction to heatsink?
The junction‑to‑heatsink thermal resistance is 5.5 K/W.
From: Philips BYV29X-600 Ultrafast Rectifier Diode Datasheet
What is the maximum reverse voltage for the BYV29F series?
The BYV29F series is rated for a peak repetitive reverse voltage of 300 V.
From: Philips BYV29F/BYV29X Series Ultrafast Rectifier Diode Datasheet
Which package types are used for the BYV29F and BYV29X diodes?
The BYV29F diodes are supplied in an SOD100 package, and the BYV29X diodes are supplied in an SOD113 package.
From: Philips BYV29F/BYV29X Series Ultrafast Rectifier Diode Datasheet
