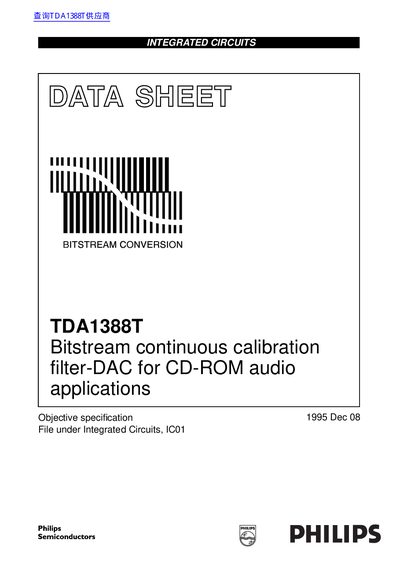

Philips TDA1388T Integrated Circuits Datasheet
The Philips TDA1388T is a CMOS digital-to-analog bitstream convertor designed for CD-ROM audio applications. It incorporates an up-sampling digital filter, a noise shaper, and integrated line and headphone drivers. The device supports multiple input formats including 2S-bus and LSB-justified inputs with word lengths up to 20 bits.
Read onlinePhilips TDA1388 specifications
| Total harmonic distortion plus noise (line output) | -85 dB (0 dB signal) |
|---|---|
| Signal-to-noise ratio | 90 dBA |
| Operating ambient temperature | -20 to +70 °C |
| System clock frequency | 8.192 to 18.432 MHz |
All Philips TDA1388 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types?
The TDA1388T is available in a plastic small outline package (SOT136-1) and a plastic shrink small outline package (SOT341-1).
What is the maximum operating ambient temperature for the TDA1388T?
The device can operate in an ambient temperature range from -20 to +70 °C.
What are the supported data input formats?
The TDA1388 supports I2S-bus with word lengths up to 20 bits and LSB-justified serial format with word lengths of 16, 18, or 20 bits.
From: Philips TDA1388 Bitstream Continuous Calibration Filter-DAC Datasheet
What packages are available for the TDA1388?
The device is available in a plastic small outline package (SO28) and a plastic shrink small outline package (SSOP28).
From: Philips TDA1388 Bitstream Continuous Calibration Filter-DAC Datasheet
