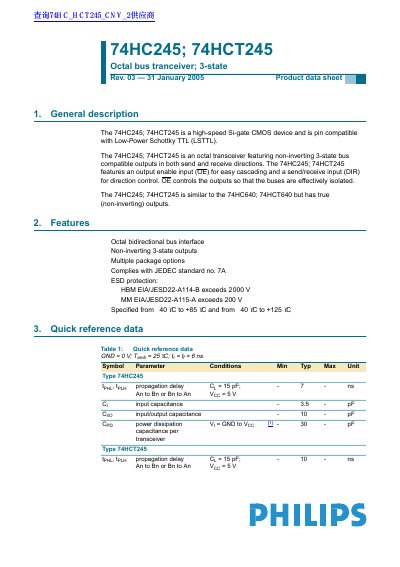

philips 74HC245 74HCT245 Octal bus tranceiver 3-state handbook
The 74HC245 and 74HCT245 are high-speed Si-gate CMOS devices that are pin compatible with Low-Power Schottky TTL (LSTTL). These octal transceivers feature non-inverting 3-state bus compatible outputs in both send and receive directions, making them suitable for bidirectional data transfer applications. The devices include an output enable input (OE) for cascading and a send/receive input (DIR) for direction control.
Read onlinePhilips HCT245 specifications
| Input capacitance | 3.5 pF |
|---|---|
| Input/Output capacitance | 10 pF |
| Supply voltage range | 2.0 V to 6.0 V (74HC245) |
| Supply voltage range | 4.5 V to 5.5 V (74HCT245) |
| Operating temperature range | -40°C to +125°C |
Source: philips 74HC245 74HCT245 Octal bus tranceiver 3-state handbook
All Philips HCT245 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are the outputs of these transceivers inverting?
No, the 74HC245 and 74HCT245 feature non-inverting 3-state outputs.
From: philips 74HC245 74HCT245 Octal bus tranceiver 3-state handbook
What is the function of the OE pin?
The OE (Output Enable) input controls the outputs so that the buses are effectively isolated.
From: philips 74HC245 74HCT245 Octal bus tranceiver 3-state handbook
What is the maximum operating temperature range for the 74HCT245?
The device operates from -40 to +125 degrees Celsius.
From: PHILIPS 74HC/HCT245 Octal bus transceiver; 3-state handbook
How much input capacitance does each pin have?
Each pin has an input capacitance of 3.5 pF.
From: PHILIPS 74HC/HCT245 Octal bus transceiver; 3-state handbook
