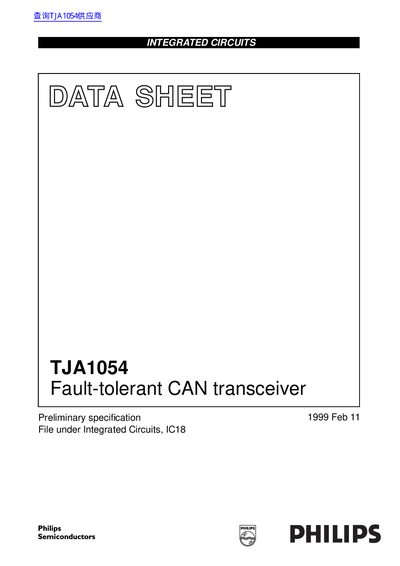

Philips TJA1054 Fault-tolerant CAN Transceiver Data Sheet
The Philips TJA1054 is a fault-tolerant CAN transceiver designed as an interface between a protocol controller and physical bus lines. It is primarily intended for low-speed applications, specifically up to 125 kBaud, in passenger cars.
Key features include support for unshielded bus wires due to built-in slope control functions and very good matching of the CANL and CANH outputs. The device offers automatic switching to single-wire transmission modes in the event of bus failures, such as short-circuits or interruptions, ensuring continued operation even when the CANH bus wire is short-circuited to Vcc.
Philips TJA1054 specifications
| Baud rate | up to 125 kBaud |
|---|---|
| Supply voltage (Vcc) | 4.75 - 5.25 V |
| Battery voltage range | -0.3 to +40 V (operating mode) |
| Operating ambient temperature | -40 to +125 °C |
| Package type | plastic small outline package; 14 leads |
Source: Philips TJA1054 Fault-tolerant CAN Transceiver Data Sheet
All Philips TJA1054 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum baud rate for the TJA1054?
The device supports a baud rate up to 125 kBaud.
From: Philips TJA1054 Fault-tolerant CAN Transceiver Data Sheet
Does the TJA1054 support unshielded bus wires?
Yes, it supports unshielded bus wires due to built-in slope control functions.
From: Philips TJA1054 Fault-tolerant CAN Transceiver Data Sheet
What causes no communication when CANH is shorted to VCC?
Only the TJA1054 tolerates a CANH‑to‑VCC short circuit; the PCA82C252 and TJA1053 do not support this condition.
From: Philips PCA82C252 / TJA1053 / TJA1054 / TJA1054A Application Note
How can I reduce current consumption in low‑power modes?
The TJA1054 operates down to 5 V and its low‑power current is about 30 µA, compared with 70 µA for the TJA1053, providing lower standby consumption.
From: Philips PCA82C252 / TJA1053 / TJA1054 / TJA1054A Application Note
