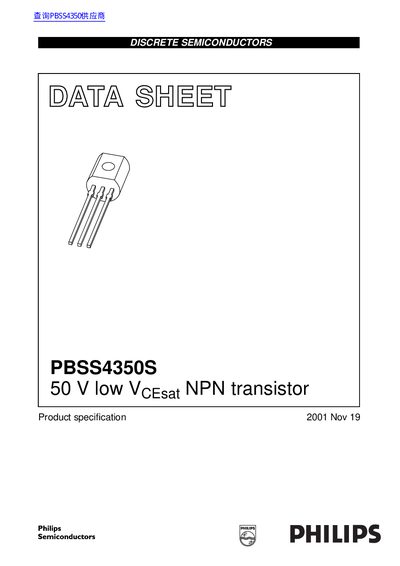

Philips PBSS4350S 50 V low VCEsat NPN transistor Datasheet
This document is a product specification datasheet for the Philips PBSS4350S, an NPN low VCEsat transistor housed in a SOT54 plastic package. It is designed for high power dissipation (830 mW) and features an ultra-low collector-emitter saturation voltage, making it suitable for high current switching applications.
The datasheet provides quick reference data, pinning information, and detailed electrical characteristics including limiting values, thermal characteristics, and typical performance curves. It also outlines recommended applications such as medium power switching, linear regulators, DC/DC converters, and battery management systems.
Philips PBSS4350S specifications
| Collector-emitter voltage (VCEO) | 50 V |
|---|---|
| Collector current (DC) | 3 A |
| Peak collector current | 5 A |
| Equivalent on-resistance | <145 mΩ |
| Power dissipation | 830 mW |
| Package type | SOT54 |
| Collector-base voltage | 60 V |
| Emitter-base voltage | 6 V |
Source: Philips PBSS4350S 50 V low VCEsat NPN transistor Datasheet
All Philips PBSS4350S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector-emitter voltage?
The maximum collector-emitter voltage is 50 V.
From: Philips PBSS4350S 50 V low VCEsat NPN transistor Datasheet
What is the continuous collector current?
The device supports 3 A of continuous collector current.
From: Philips PBSS4350S 50 V low VCEsat NPN transistor Datasheet
What is the maximum DC collector current rating for this transistor?
The maximum DC collector current is 2 A.
What is the maximum collector-emitter voltage rating?
The maximum collector-emitter voltage is 50 V.
