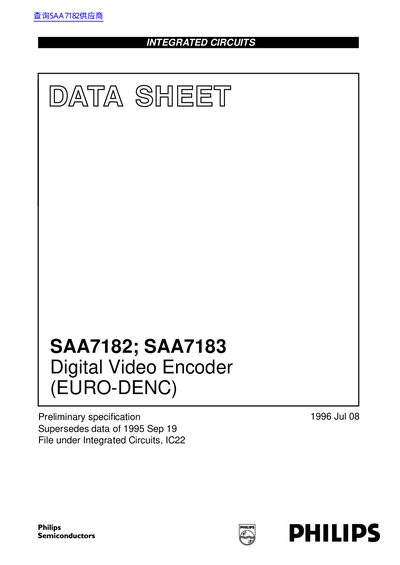

Philips SAA7182/SAA7183 Digital Video Encoder Datasheet
The SAA7182 and SAA7183 are CMOS 5 V devices designed to encode digital YUV video data into NTSC, PAL, or SECAM CVBS signals, as well as RGB outputs. These integrated circuits accept MPEG decoded data on an 8-bit wide input port in CCIR compatible formats.
Read onlinePhilips SAA7182 specifications
| Supply Voltage | 4.75 to 5.25 V |
|---|---|
| Pixel Frequency | 13.5 MHz |
| DAC Resolution (CVBS, Y, C) | 10-bit |
| DAC Resolution (RGB) | 9-bit |
| Operating Temperature | 0 to +70 °C |
Source: Philips SAA7182/SAA7183 Digital Video Encoder Datasheet
All Philips SAA7182 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video signal formats does the SAA7182; SAA7183 encoder produce?
The device encodes digital YUV video data to an NTSC, PAL, SECAM CVBS or S-Video signal and also RGB.
From: Philips SAA7182/SAA7183 Digital Video Encoder Datasheet
What is the operating ambient temperature range for the SAA7182; SAA7183?
The operating ambient temperature ranges from 0 to +70 °C.
From: Philips SAA7182/SAA7183 Digital Video Encoder Datasheet
What analog supply voltage does the SAA7182A require?
The analog supply voltage (Vppas) is 3.3 V, with a minimum of 3.1 V and a maximum of 3.5 V.
From: Philips SAA7182A SAA7183A Digital Video Encoder (EURO-DENC2) Datasheet
What is the maximum soldering temperature allowed for these IC packages?
The maximum permissible solder temperature is 260 °C, with a typical dwell time of 4 seconds at 250 °C.
From: Philips SAA7182A SAA7183A Digital Video Encoder (EURO-DENC2) Datasheet
