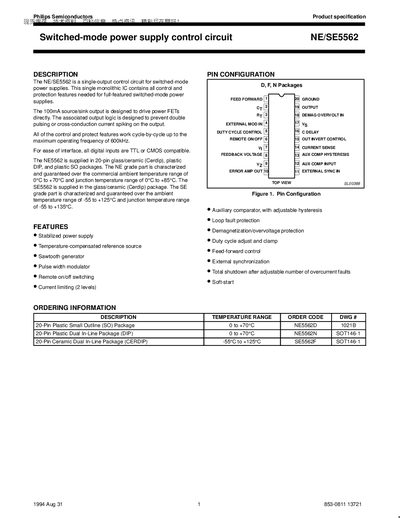

Philips NE/SE5562 Switched-Mode Power Supply Control Circuit Datasheet
The NE/SE5562 is a single‑output control circuit for switched‑mode power supplies, integrating control and protection features such as current limiting, remote on/off, and feed‑forward control. It drives power FETs directly with a 100 mA source/sink output and operates cycle‑by‑cycle up to 600 kHz.
The device is offered in 20‑pin plastic DIP, SO, and ceramic (Cerdip) packages. Two temperature‑grade versions are available: NE (0 °C to +70 °C) and SE (‑55 °C to +125 °C). Electrical characteristics include a 10‑16 V supply range, 100 mA output current, and a 3.80 V internal reference.
Philips SE556 specifications
| Supply voltage (forced mode) | +18 V |
|---|---|
| Output current | 40 mA |
| Output voltage | 1.4 V |
| Output duty cycle | 98 % |
| Maximum total power dissipation | 0.75 W |
| Operating temperature range (SE5561) | -55 °C to +125 °C |
Source: Philips NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
