Start here

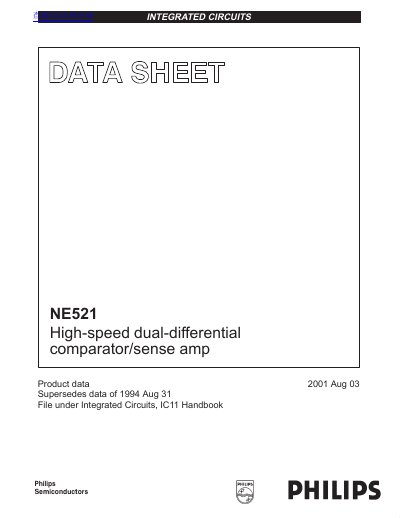

Philips NE521 High-speed Dual-Differential Comparator/Sense Amp Datasheet
This datasheet provides product data for the NE521 High-speed dual-differential comparator/sense amp. Key features include a 12 ns maximum guaranteed propagation delay, 20 µA maximum input bias current, and TTL compatible strobes and outputs. The device operates from standard supply voltages and offers a large common-mode input voltage range.
Read onlinePhilips NE521 specifications
| Maximum propagation delay | 12 ns |
|---|---|
| Maximum input bias current | 20 µA |
| Operating temperature range | 0 to 70 °C |
| Storage temperature range | -65 to +150 °C |
| Maximum power dissipation (N package) | 1420 mW |
| Maximum power dissipation (D package) | 1040 mW |
| Maximum operating frequency | 55 MHz |
Source: Philips NE521 High-speed Dual-Differential Comparator/Sense Amp Datasheet
All Philips NE521 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the NE521?
The NE521 is suitable for MOS memory sense amps and A-to-D conversion.
From: Philips NE521 High-speed Dual-Differential Comparator/Sense Amp Datasheet
What is the maximum propagation delay?
The maximum guaranteed propagation delay is 12 ns.
From: Philips NE521 High-speed Dual-Differential Comparator/Sense Amp Datasheet
