Start here

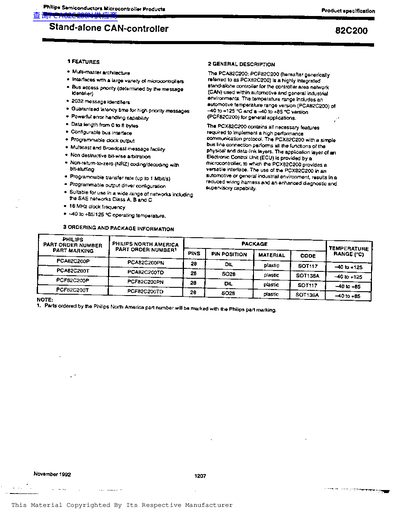

Philips 82C200 Stand-Alone CAN-Controller Product Specification
The document describes the Philips 82C200, a highly integrated stand-alone controller for the Controller Area Network (CAN). It is designed to perform all functions of the physical and data-link layers within automotive and general industrial environments. The device supports both an automotive temperature range version (PCA82C200) operating from -40 to +125 °C and a general application version (PCF82C200) operating from -40 to +85 °C.
Read onlinePhilips 82C200 specifications
| Maximum Transfer Rate | 1 Mbit/s |
|---|---|
| Clock Frequency | 16 MHz |
| Data Length | 0 to 8 bytes |
| Number of Message Identifiers | 2032 |
Source: Philips 82C200 Stand-Alone CAN-Controller Product Specification
All Philips 82C200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data length supported by this controller?
The device supports a data length from 0 to 8 bytes.
From: Philips 82C200 Stand-Alone CAN-Controller Product Specification
What microcontrollers is the PCA82C200 compatible with?
It interfaces with a large variety of microcontrollers, including Intel, Motorola, or Intel and Motorola compatible types.
From: Philips PCA82C200 Stand-alone CAN-controller Data Sheet
What are the applications for the PCA82C200?
It is suitable for use in a wide range of networks including the SAE networks Class A, B and C.
From: Philips PCA82C200 Stand-alone CAN-controller Data Sheet
