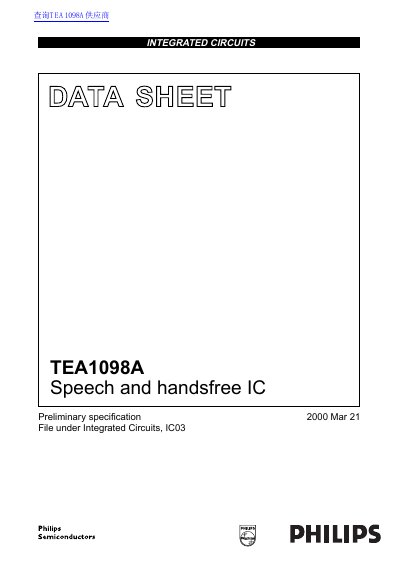

Philips TEA1098A Speech and handsfree IC Datasheet
The Philips TEA1098A is an analog bipolar integrated circuit designed for telephony applications, specifically line-powered telephone sets. It functions as a duplex controller integrating line interface, handset microphone and earpiece amplifiers, and handsfree microphone and loudspeaker amplifiers.
The device provides a strong 3.35 V regulated supply for microcontrollers and a filtered 2.0 V supply for electret microphones. It features digital volume control for both earphone and loudspeaker amplifiers, automatic gain control for line loss compensation, and a duplex controller with adjustable signal and noise envelope monitors.
Philips TEA1098 specifications
| Stabilized voltage between SLPE and GND | 3.4 - 6.5 V |
|---|---|
| Voltage gain from MIC+ to LN | 43.3 - 45.3 dB |
| Voltage gain from IR to RECO | 28.7 - 30.7 dB |
| Voltage gain range between RECO and EARO | -3 - 41.5 dB |
| Voltage gain from HFTX to LN | 33.5 - 35.9 dB |
