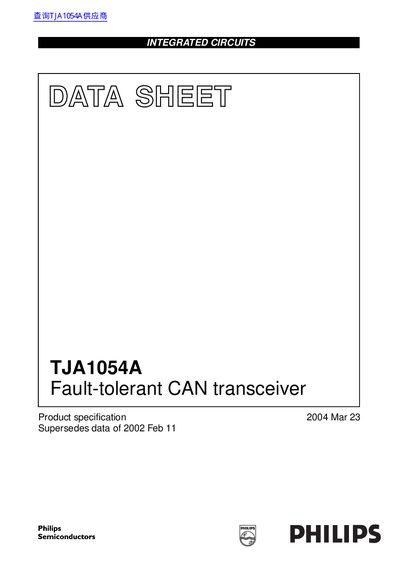

Philips TJA1054A Fault-tolerant CAN Transceiver Data Sheet
The TJA1054A serves as the interface between a protocol controller and the physical bus wires in a Controller Area Network (CAN). It is primarily intended for low-speed applications up to 125 kBaud in passenger cars, providing differential receive and transmit capability. The device supports unshielded bus wires and features built-in slope control to minimize ElectroMagnetic Emission (EME).
The transceiver includes robust protection mechanisms and automatic failure management. It can automatically switch to single-wire transmission modes if a bus wire is corrupted or short-circuited, even when the CANH line is shorted to Vcc. Additionally, it supports low power modes with wake-up capabilities via the bus lines.
Philips TJA1054A specifications
| Supply voltage on pin Vcc | 4.75 - 5.25 V |
|---|---|
| Battery voltage on pin BAT | -0.3 to +40 V |
| Operating mode battery voltage | 5.0 to 27 V |
| Load dump voltage on pin BAT | -40 V max |
| Sleep mode battery current | 30 to 50 uA |
| CANH bus line voltage range | -27 to +40 V |
| CANL bus line voltage range | -27 to +40 V |
| CANH transmitter voltage drop | -1.4 V max |
| CANL transmitter voltage drop | -1.4 V max |
| Operating temperature range | -40 to +150 °C |
Source: Philips TJA1054A Fault-tolerant CAN Transceiver Data Sheet
All Philips TJA1054A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum baud rate for the TJA1054A?
The device supports a baud rate up to 125 kBaud.
From: Philips TJA1054A Fault-tolerant CAN Transceiver Data Sheet
How many nodes can be connected to the bus?
Up to 32 nodes can be connected using this transceiver.
From: Philips TJA1054A Fault-tolerant CAN Transceiver Data Sheet
What causes no communication when CANH is shorted to VCC?
Only the TJA1054 tolerates a CANH‑to‑VCC short circuit; the PCA82C252 and TJA1053 do not support this condition.
From: Philips PCA82C252 / TJA1053 / TJA1054 / TJA1054A Application Note
How can I reduce current consumption in low‑power modes?
The TJA1054 operates down to 5 V and its low‑power current is about 30 µA, compared with 70 µA for the TJA1053, providing lower standby consumption.
From: Philips PCA82C252 / TJA1053 / TJA1054 / TJA1054A Application Note
