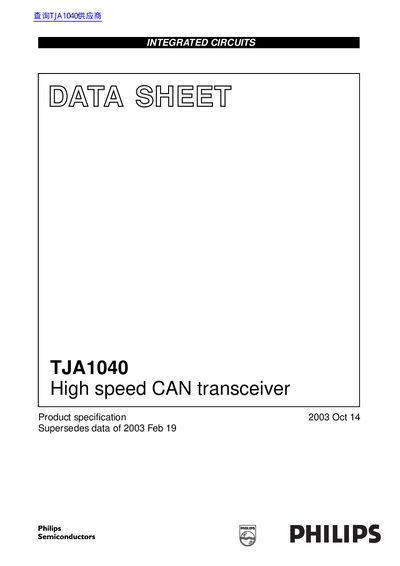

Philips TJA1040 High Speed CAN Transceiver Datasheet
The Philips TJA1040 is a high-speed CAN transceiver designed for automotive environments, supporting data rates up to 1 MBaud. It is fully compatible with the ISO 11898 standard and offers a very low-current standby mode with remote wake-up capability via the bus. The device is intended for use in passenger cars and provides differential transmit and receive capabilities to the physical bus.
Key features include a differential receiver with a high common-mode range for ElectroMagnetic Immunity (EMI), protection against transients in automotive environments, and bus pins that are short-circuit proof to battery and ground. The transceiver also includes a TXD dominant time-out function to prevent bus blocking and is thermally protected.
Philips TJA1040 specifications
| Supply voltage operating range | 4.75 to 5.25 V |
|---|---|
| Maximum data rate | 1 MBaud |
| Electrostatic discharge voltage (pins CANH, CANL, SPLIT) | -6 to +6 kV |
| Package type | plastic small outline package; 8 leads |
Source: Philips TJA1040 High Speed CAN Transceiver Datasheet
All Philips TJA1040 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the TJA1040?
The TJA1040 supports high-speed applications up to 1 MBaud.
Does the TJA1040 support remote wake-up?
Yes, it features a very low-current standby mode with remote wake-up capability via the bus.
What is the maximum CAN bus speed supported by the TJA1040?
The TJA1040 supports high‑speed CAN communication up to 1 MBaud.
How many CAN nodes can be connected to a network using the TJA1040?
The device can be connected to at least 110 nodes in a CAN network.
